Window Glass System & Mirror System - Glass/Window/Mirrors
›
General Description
›
Components With Torque Specifications
›
Mirror
Components With Torque Specifications: Mirror

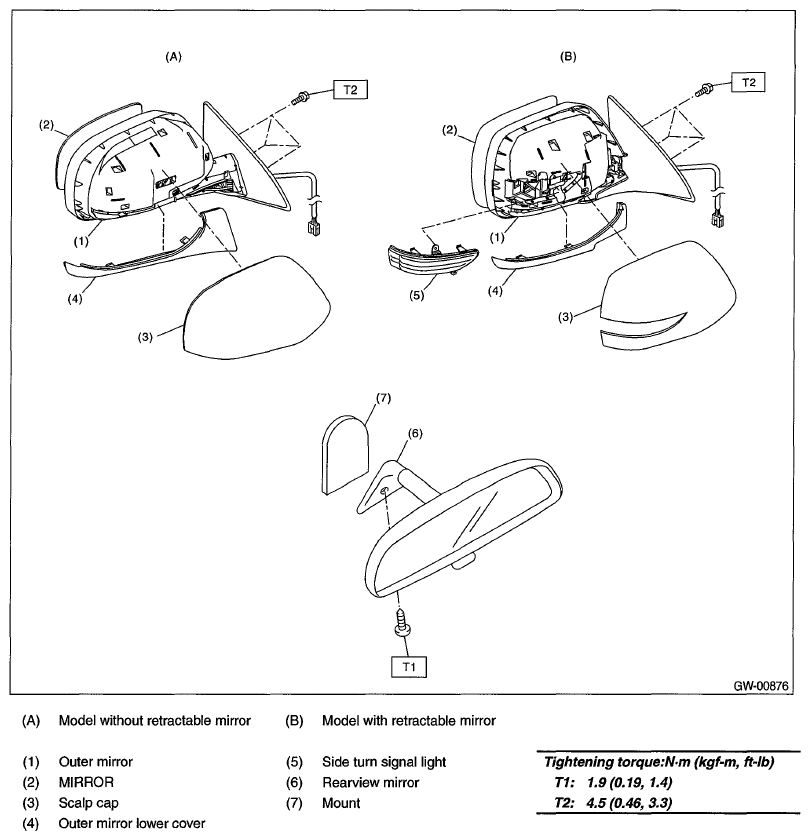

Fig 1: Mirror Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
