Anti-Lock Brake System - Vehicle Dynamics Control (VDC)
›
General Description
›
Components With Torque Specifications
›
Abs Wheel Speed Sensor
Abs Wheel Speed Sensor

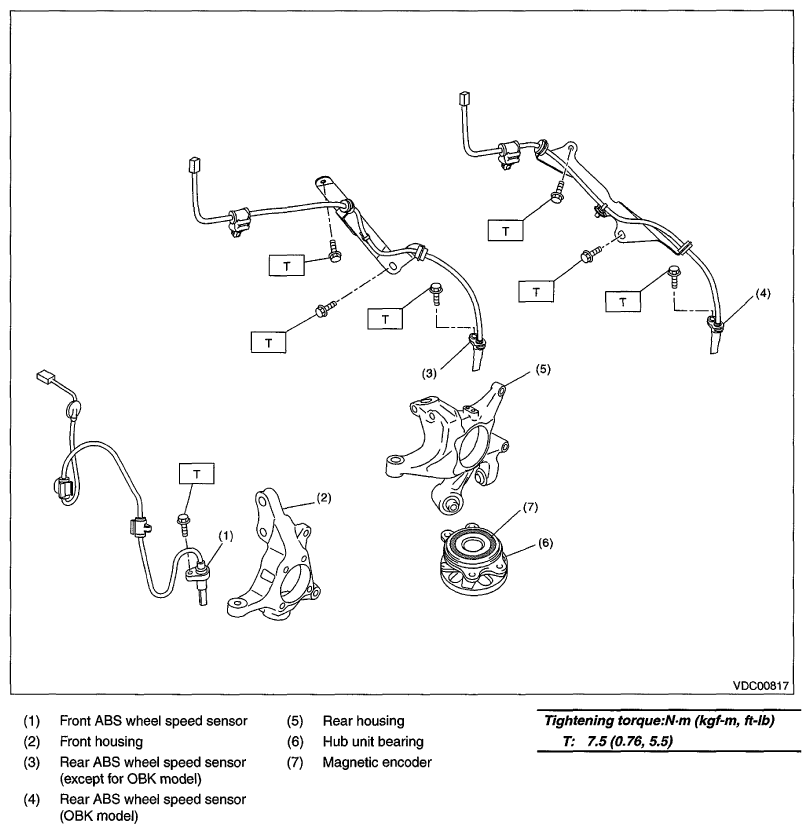

Fig 1: ABS Wheel Speed Sensor Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
