Starting System & Charging System (H4SO): Generator: Removal

Disconnect the ground cable from battery.

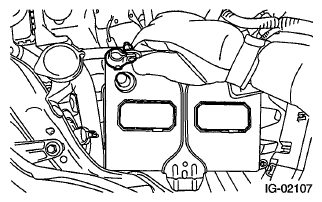

Fig 1: Identifying Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts. Ref. to V-BELT , REMOVAL, V-belt. Ref. to V-BELT , REMOVAL, V-belt. Ref. to REMOVAL , V-belt.
Disconnect the connector and terminal from generator.

Fig 2: Locating Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the collector cover bracket or V-belt cover bracket.

Fig 3: Locating Collector Cover Bracket And V-Belt Cover Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the bracket.

Fig 4: Removing Generator From Bracket
Courtesy of SUBARU OF AMERICA, INC.
