Intake Manifold

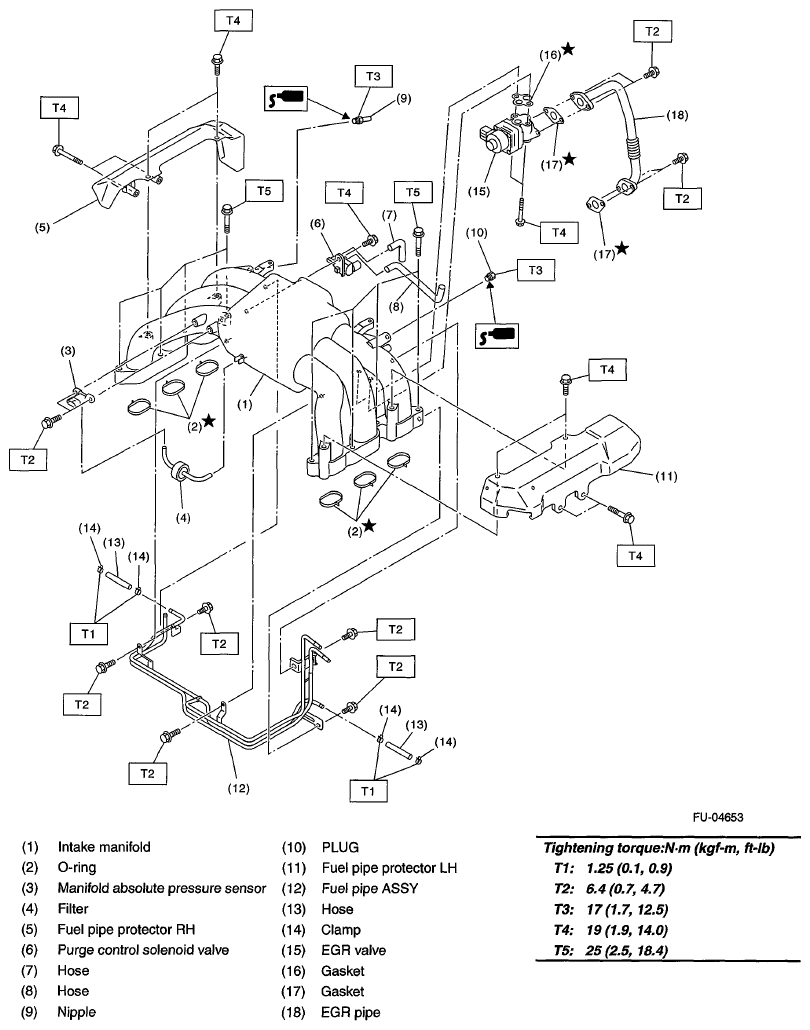

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque. N.m (kgf-m, ft-lb)

T1: 1.25 (0.1,0.9)

T2: 6.4 (0.7,4.7)

T3: 17 (1.7, 12.5)

T4: 19 (1.9, 14.0)

T5: 25 (2.5, 18.4)
