Speed Control Systems (H4SO - 2.5L SOHC)
›
General Description
›
Components With Torque Specifications
Components With Torque Specifications

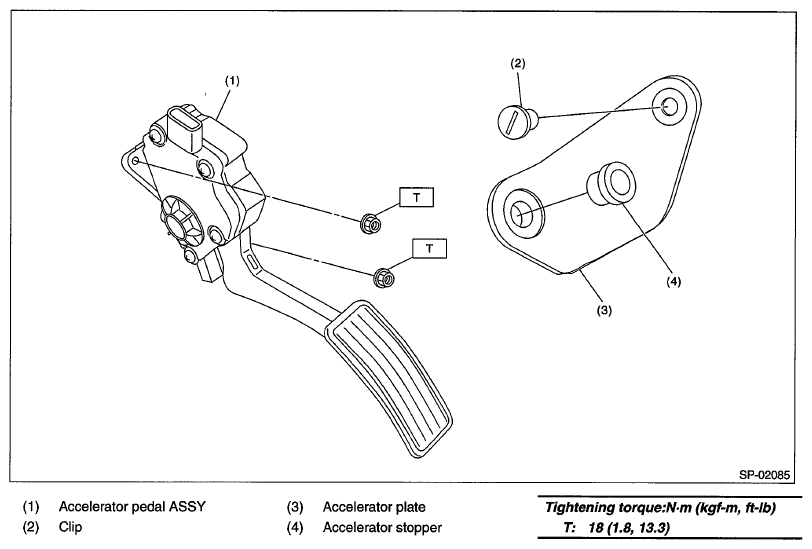

Fig 1: Accelerator Pedal Assembly, Accelerator Plate And Accelerator Stopper With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
