Section 6 (Clutch System): Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly. Ref. to
REMOVAL
, Manual Transmission Assembly.
- Remove the clutch cover and clutch disc. Ref. to
REMOVAL , Clutch Disc and Cover.

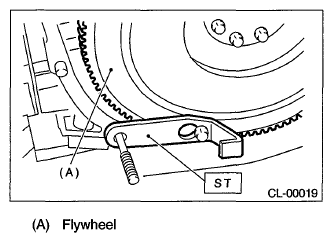

- Using the ST, remove the flywheel.
ST 498497100 CRANKSHAFT STOPPER
Courtesy of SUBARU OF AMERICA, INC.
