Seat Belt System
›
General Description
›
Components With Torque Specifications
›
Rear Seat Belt (Outback Model)
Rear Seat Belt (Outback Model)

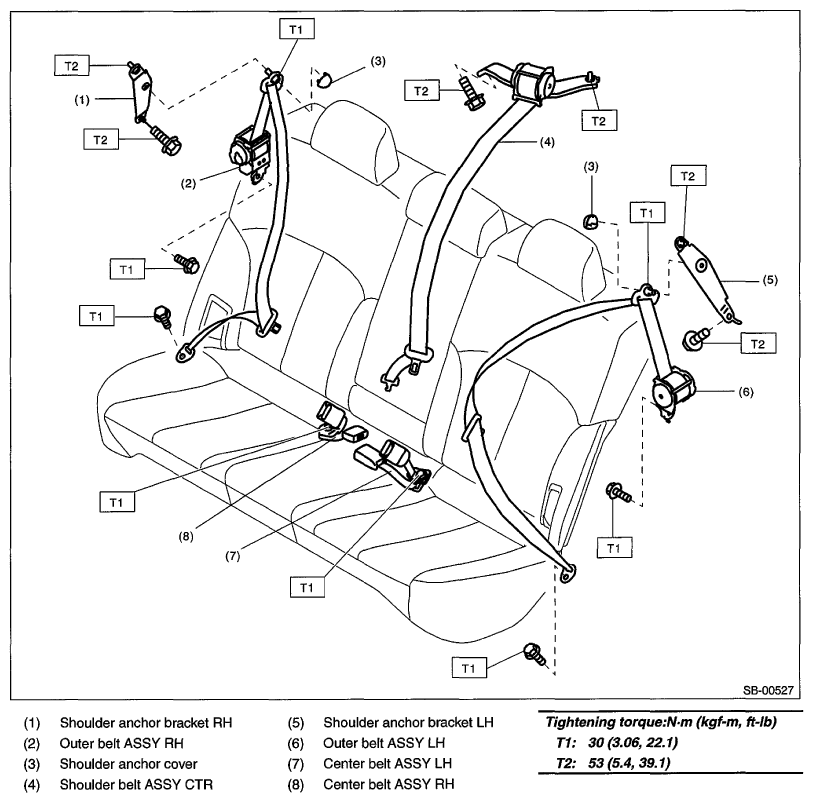

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
