Reservoir Tank: Removal

Drain fluid from the reservoir tank.
Disconnect the hose from reservoir tank.
CAUTION: Plug the ends of the hose and pipe to prevent foreign matter from entering.
Remove the reservoir tank from the body.

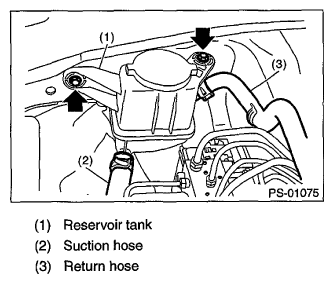

Fig 1: Identifying Reservoir Tank, Suction Hose And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
