Intake Duct

WARNING: This page is about a different variant/trim than selected.

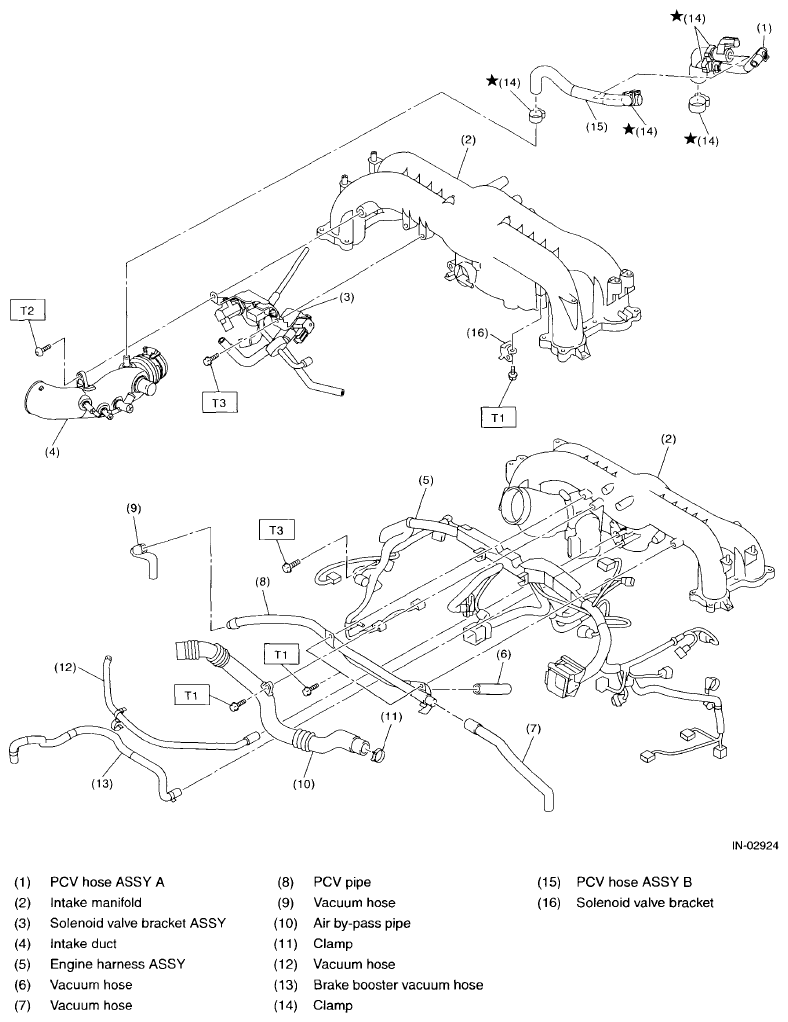

Fig 1: Intake Duct Components With Tightening Torque

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 17 (1.7, 12.5)

T3: 19 (1.9, 14.0)
