Section 1 (Engine Intake System - Intake (H4DOTC)): Intercooler: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the air by-pass pipe (A) and vacuum hose (B) from the air by-pass valve.
Loosen the clamp (C) which holds the intake duct to intercooler.

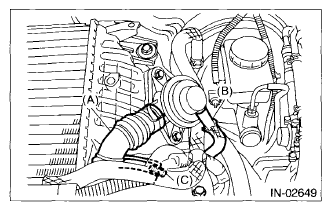

Fig 1: Air By-Pass Pipe, Vacuum Hose And Intake Duct Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold intercooler to turbocharger.

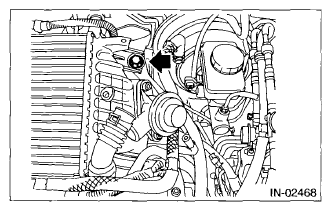

Fig 2: Locating Bolts Which Hold Intercooler To Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the intercooler to the intercooler stay, and remove the intercooler.

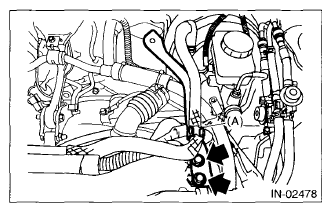

Fig 3: Locating Bolts Which Secure Intercooler To Intercooler Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the brake booster vacuum hose from the clip (A), and remove the intercooler stay.

Fig 4: Locating Brake Booster Vacuum Hose Clip Bolts
Courtesy of SUBARU OF AMERICA, INC.
