Components With Torque Specifications

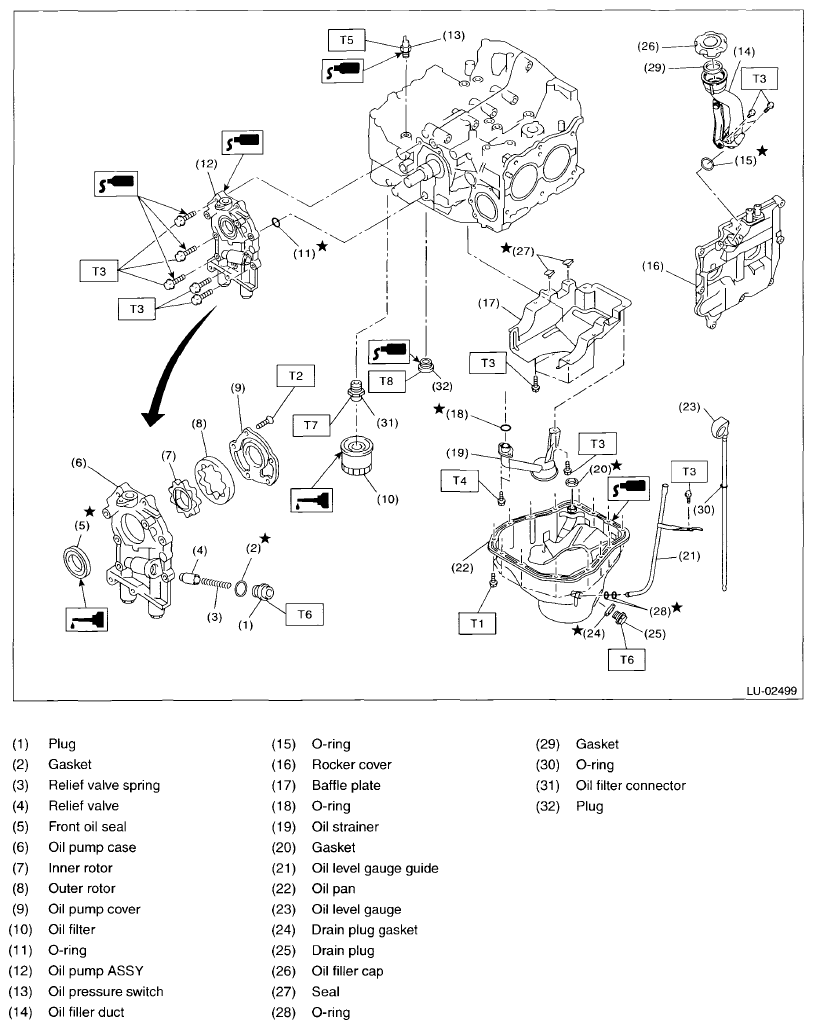

Fig 1: Identifying Engine Components Lubrication And Sealant Points

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 5.4 (0.6, 4.0)

T3: 6.4 (0.7., 4.7)

T4: 10 (1.0, 7.0)

T5: 25 (2.5, 18.4)

T6: 44 (4.5, 32.5)

T7: 45 (4.6, 33.2)

T8: 70 (7.1, 51.6)
