AT Shift Lock Control System: Location

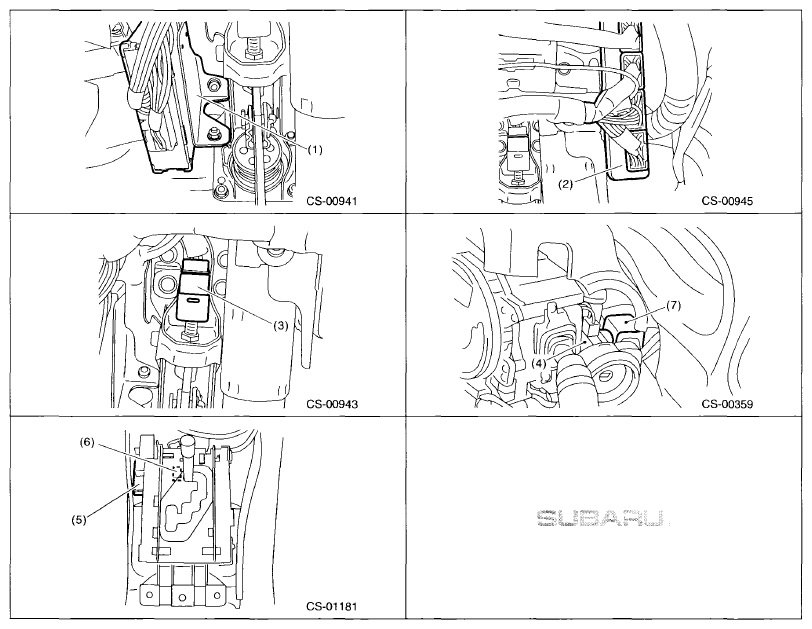

Fig 1: Identifying Shift Lock Control System Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

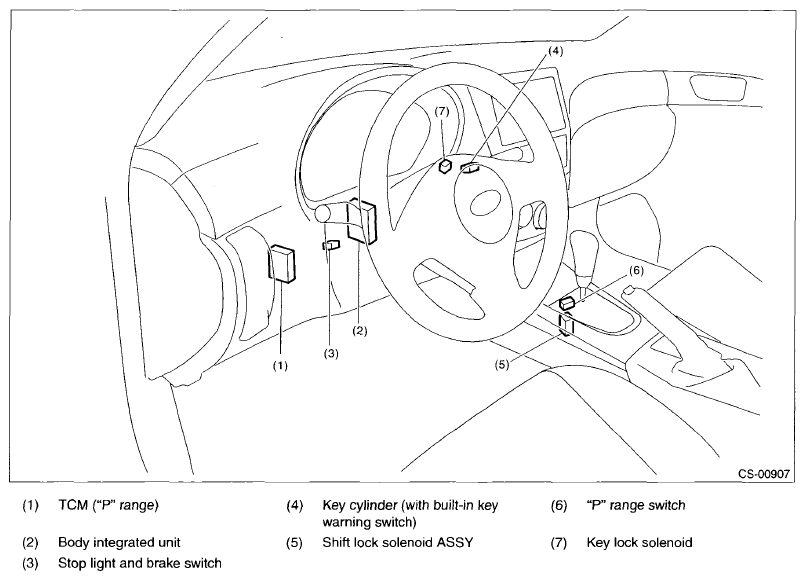

Fig 2: Identifying Shift Lock Control System Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
