Fuel Filler Pipe: Assembly

Temporarily tighten the bolts securing the fuel filler pipe bracket to the fuel filler pipe.

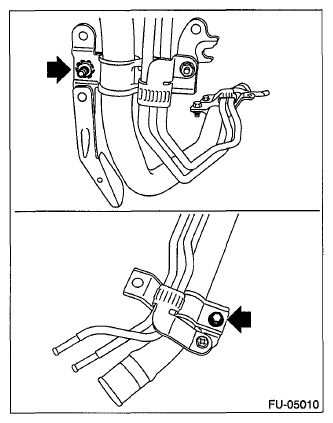

Fig 1: Locating Fuel Filler Pipe Bracket Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the evaporation pipe to the fuel filler pipe.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Locating Fuel Filler Pipe Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the fuel filler pipe bracket to the fuel filler pipe.
Tightening torque:

7.35 N.m (0.7 kgf-m, 5.4 ft-lb)

Fig 3: Locating Fuel Filler Pipe Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the shut valve to the fuel filler pipe. Refer to SHUT VALVE .
