LH Side

Release the fuel pressure. Refer to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Remove the collector cover.
Disconnect the ground cable from battery.

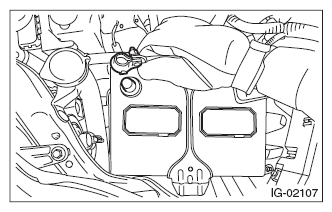

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. Refer to , REMOVAL , Intake Manifold.
Disconnect front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B) from the intake manifold protector LH, and also remove clip (C) which holds the engine harness.

Fig 2: Identifying Front Oxygen (A/F) Sensor Connector, Rear Oxygen Sensor Connector And Intake Manifold Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine ground terminal from the intake manifold protector LH, and remove the intake manifold protector LH from the intake manifold.

Fig 3: Locating Bolts And Intake Manifold Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

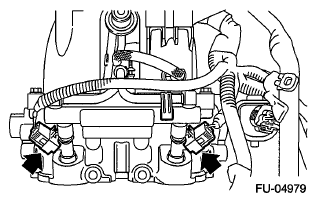

Fig 4: Locating Fuel Injector Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the fuel delivery pipe to the intake manifold.

Fig 5: Identifying Vacuum Hose, Vacuum Control Hose And Brake Booster Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

Fig 6: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
