Air Intake Boot: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

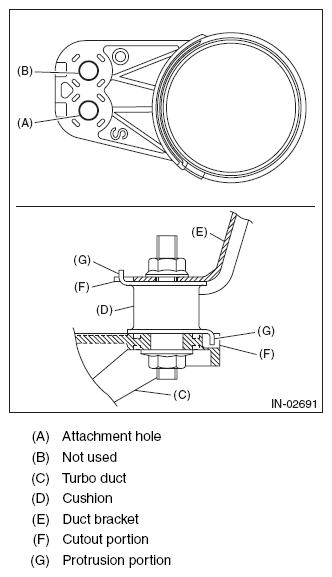

NOTE: When installing the air intake boot to the vehicle, pay attention to the mounting hole position, and align the protrusion for stopping rotation of cushion to the cutout portion on the turbo duct.

Fig 1: Locating Air Intake Boot Clamp Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Locating Air Intake Boot Clamp

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 3: Locating Air Intake Boot Clamp

Courtesy of SUBARU OF AMERICA, INC.
