Intake Duct

WARNING: This page is about a different variant/trim than selected.

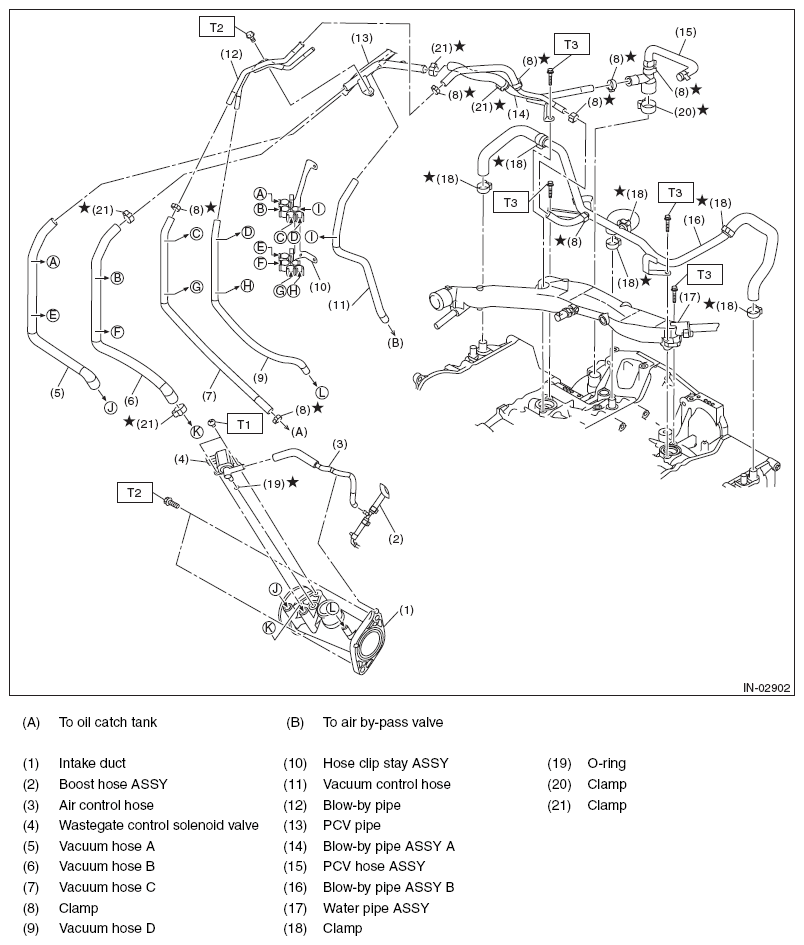

Fig 1: Exploded View Of Intake Duct With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4 (0.4, 3.0)

T2: 6.4 (0.7, 4.7)

T3: 6.5 (0.7, 4.8)
