Clearance/Parking Light Bulb: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct. (When removing the front clearance light bulb RH)
    Fig 1: Locating Air Intake Duct Clips
    G06653429Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and clearance light bulb.
    NOTE: Move the battery rearward as required. (When removing the front clearance light bulb LH)

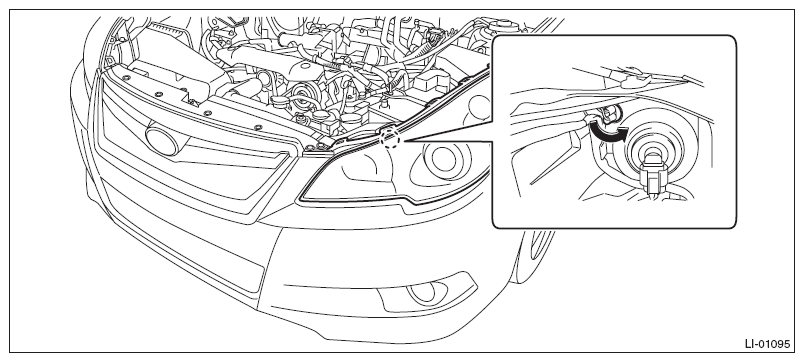

    Fig 2: Removing Bulb Socket And Clearance Light Bulb
    G07916080Courtesy of SUBARU OF AMERICA, INC.
