Stop Light Switch: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the instrument panel lower cover.

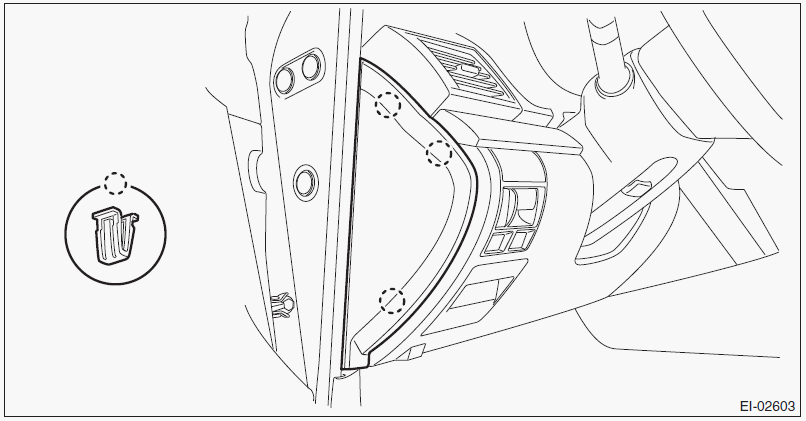

1. Remove the clips, and remove the instrument panel side cover LH.

  Fig 1: Identifying Instrument Panel Side Cover LH
  Courtesy of SUBARU OF AMERICA, INC.

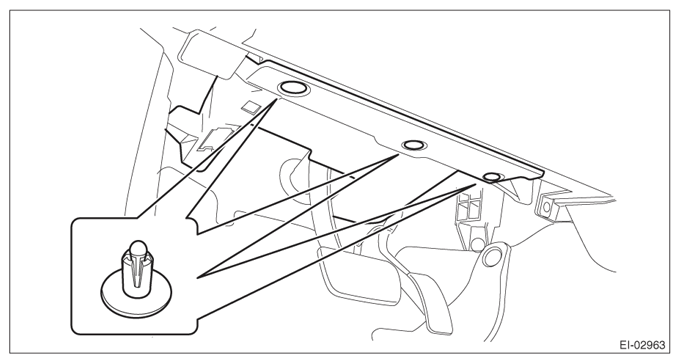

2. Remove the clips and data link connector, and remove the instrument panel lower cover under.

  Fig 2: Identifying Instrument Panel Lower Cover Under And Clips
  Courtesy of SUBARU OF AMERICA, INC.

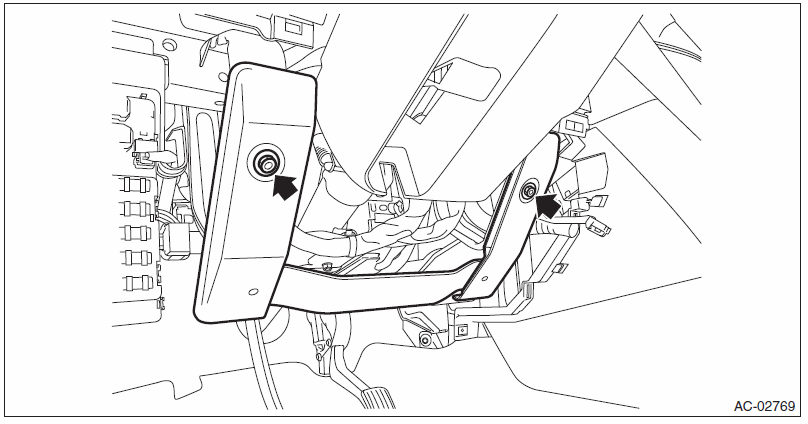

3. Remove the bolts, and remove the knee guard panel.

  Fig 3: Identifying Knee Guard Panel Bolts
  Courtesy of SUBARU OF AMERICA, INC.

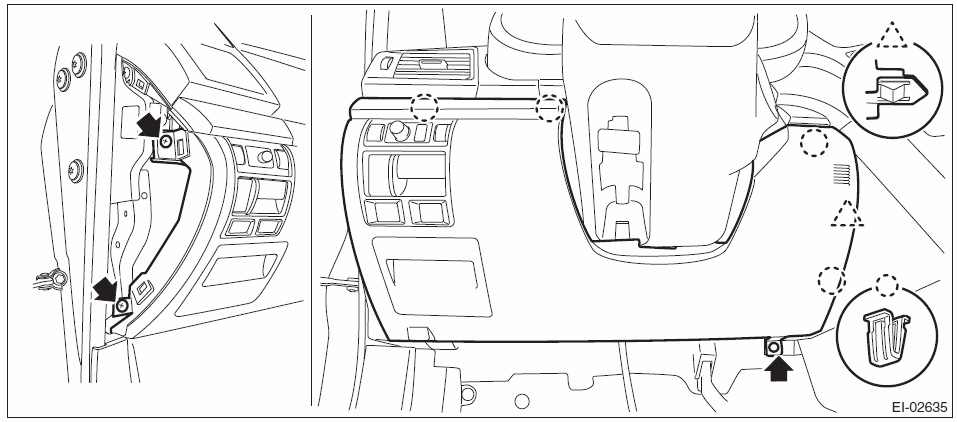

4. Remove the screws and clips and release the claws, and remove the instrument panel lower cover while disconnecting the harness connectors.

  Fig 4: Identifying Instrument Panel Lower Cover Screws And Clips
  Courtesy of SUBARU OF AMERICA, INC.
Remove the stop light switch.

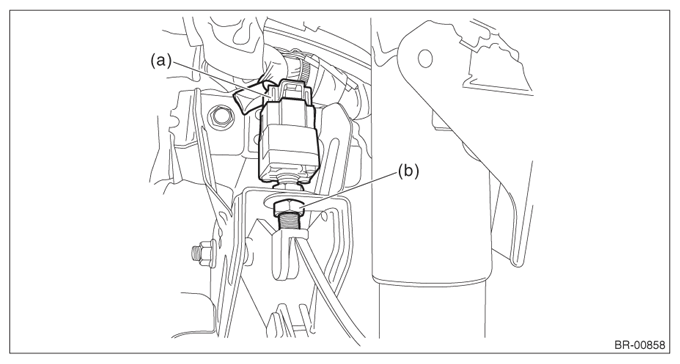

1. Disconnect the stop light switch connector (a).
2. Remove the nut (b), and remove the stop light switch.

  Fig 5: Identifying Stop Light Switch Connector And Nut
  Courtesy of SUBARU OF AMERICA, INC.
