Rear Differential Mount Bushing: Replacement

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If there was so much rust in the rear differential mount bushing, remove the rust before starting work.
  1. Remove the rear differential. Refer to , REMOVAL , Rear Differential (T-type). Refer to , REMOVAL , Rear Differential (VA-type).
  2. Fit the ST to the periphery of the sub frame cylinder, and make sure that the ST does not contact with welded spots or spatters.

    ST 41399FG010 SPECIAL TOOL A

    Fig 1: Fitting ST To Sub Frame Cylinder
    G07915582Courtesy of SUBARU OF AMERICA, INC.
  3. If the ST contacts with welded spots or spatters, remove the excessive welds or spatters with sander or the equivalent so that the ST contacts the cylinder peripheral part.
    CAUTION: Performing the operation with the ST contacting with welded spots or spatters may break the ST. Be sure to remove excessive welds or spatters before the operation.
  4. Set ST1, ST2, ST3, ST4 and ST5 as shown in the figure.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    ST3 41399FG050 SPECIAL TOOL SLEEVE

    ST4 41399FG080 SPECIAL TOOL BEARING

    ST5 41399FG010 SPECIAL TOOL A

    Fig 2: Positioning Special Tools On Cylinder Peripheral Part
    G07915583Courtesy of SUBARU OF AMERICA, INC.
  5. Fit and hold the ST1 and ST2 to the rear differential mount bushing from the rear side of vehicle.

    ST1 41399FG031 SPECIAL TOOL C

    ST2 41399FG061 SPECIAL TOOL RING

    Fig 3: Positioning ST1 And ST2 To Rear Differential Mount Bushing
    G07915584Courtesy of SUBARU OF AMERICA, INC.
  6. Insert the ST set in the step  4) through the rear differential mount bushing hole from the front side of vehicle, and screw in the ST2 by hand till the front end of ST3 comes out slightly from the rear end of ST1.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG061 SPECIAL TOOL RING

    ST3 41399FG070 SPECIAL TOOL NUT

    Fig 4: Inserting ST Set In Rear Differential Mount Bushing Hole
    G07666268Courtesy of SUBARU OF AMERICA, INC.

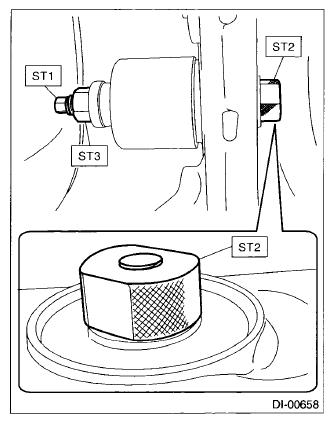

  7. Hold the ST1 to prevent it from rotating, and screw in the ST3 by hand till there is no loose fit on the ST2.
    CAUTION: When setting the ST to the vehicle, always make sure that the ST2 fits the periphery of the sub frame cylinder and is not tilted.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG010 SPECIAL TOOL A

    ST3 41399FG070 SPECIAL TOOL NUT

    Fig 5: Holding Special Tool Shaft
    G07666269Courtesy of SUBARU OF AMERICA, INC.
  8. Hold the ST1 with a tool to prevent it from rotating, and screw in the ST2 to remove the rear differential mount bushing.
    CAUTION:
    • Rotation of ST1 will damage the screw at the rear end of rear differential mount bushing. Never rotate the ST1.
    • If the ST starts to tilt while removing the rear differential mount bushing, stop the work and set the ST again.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 6: Removing Rear Differential Mount Bushing
    G07666270Courtesy of SUBARU OF AMERICA, INC.

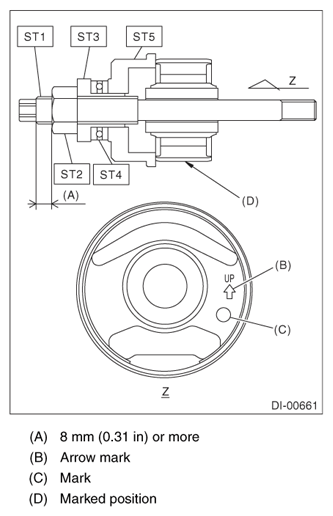

  9. Set ST1, ST2, ST3, ST4, ST5 and rear differential mount bushing as shown in the figure.
    NOTE:
    • Set the ST2 nut near to the end of ST1 screw.
    • Hold the rear differential mount bushing with the marked side facing toward the rear of the vehicle, and set the rear differential mount bushing to the ST so that the arrow mark faces upward.
    • Mark the bottom end of rear differential mount bushing to identify the installing direction.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    ST3 41399FG050 SPECIAL TOOL SLEEVE

    ST4 41399FG080 SPECIAL TOOL BEARING

    ST5 41399FG020 SPECIAL TOOL B

    Fig 7: Identifying Mark On Bottom End Of Rear Differential Mount Bushing
    G07915588Courtesy of SUBARU OF AMERICA, INC.

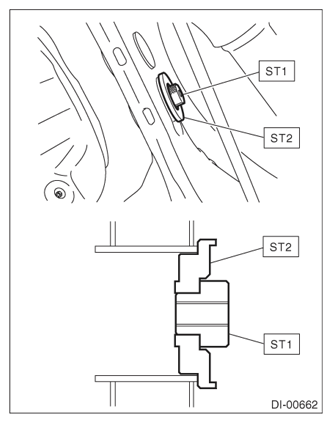

  10. Attach ST1 to the ST2, and fit and hold the STs as a unit to the sub frame from the rear side of vehicle.

    ST1 41399FG061 SPECIAL TOOL RING

    ST2 41399FG041 SPECIAL TOOL D

    Fig 8: Attaching ST1 To ST2
    G07915589Courtesy of SUBARU OF AMERICA, INC.

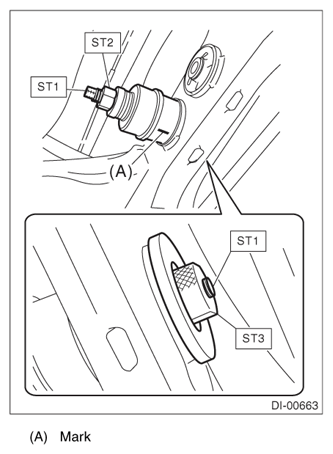

  11. Insert the ST set in the step  9) through the sub frame from the front side of vehicle, and screw in the ST1 by hand till the front end of ST1 comes out slightly from the rear end of ST3.
    CAUTION: Set the rear differential mount bushing with its mark facing the bottom end direction.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    ST3 41399FG061 SPECIAL TOOL RING

    Fig 9: Identifying Rear Differential Mount Bushing Mark
    G07915590Courtesy of SUBARU OF AMERICA, INC.

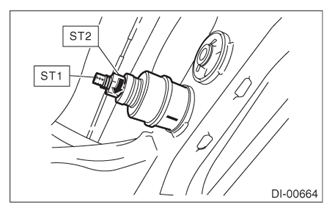

  12. Hold the ST1 to prevent it from rotating, and screw in the ST2 by hand till there is no loose fit on the ST and the rear differential mount bushing.
    CAUTION: Make sure that the ST and rear differential mount bushing are not tilted.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 10: Tightening Rear Differential Mount Bushing
    G07915591Courtesy of SUBARU OF AMERICA, INC.
  13. Screw in the ST2 while holding the ST1 with a tool to prevent it from rotating, and press-fit the rear differential mount bushing to the front end of sub frame cylinder.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 11: Screwing Special Tool Nut
    G07666275Courtesy of SUBARU OF AMERICA, INC.
  14. Make sure that the rear differential mount bushing is inserted to the front end of sub frame cylinder.
    Fig 12: Identifying Rear Differential Mount Bushing Installation Position
    G07915593Courtesy of SUBARU OF AMERICA, INC.
  15. Install the rear differential. Refer to , INSTALLATION , Rear Differential (T-type). Refer to , INSTALLATION , Rear Differential (VA-type).
