Master Cylinder: Installation

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Replace the seal sub assembly for the master cylinder with a new part.
CAUTION: Be careful not to install the seal sub assembly in the wrong location.

Fig 1: Installing Seal Sub Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
CAUTION:
- Install the bracket at the position with sufficient clearance that it does not contact with the check valve.
- Be sure to loosen the master cylinder mounting nut while holding the bracket with hand. Otherwise the bracket may deform.

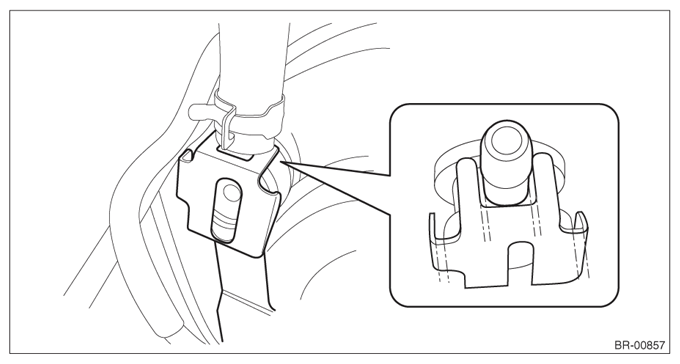

Fig 2: Installing Master Cylinder Assembly And Bracket
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Master cylinder: 13 N.m (1.33 kgf-m, 9.6 ft-lb)

Brake pipe flare nut: 19 N.m (1.94 kgf-m, 14.0 ft-lb)
Bleed air from the brake system. Refer to , PROCEDURE , Air Bleeding.
