Rear Disc Brake Assembly: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not allow brake fluid to come in contact with vehicle body. If it does, wash off with water and wipe away completely.

Lift up the vehicle, and then remove the rear wheels.
Remove the caliper body from support.
1. Remove the brake hose bracket and union bolt.

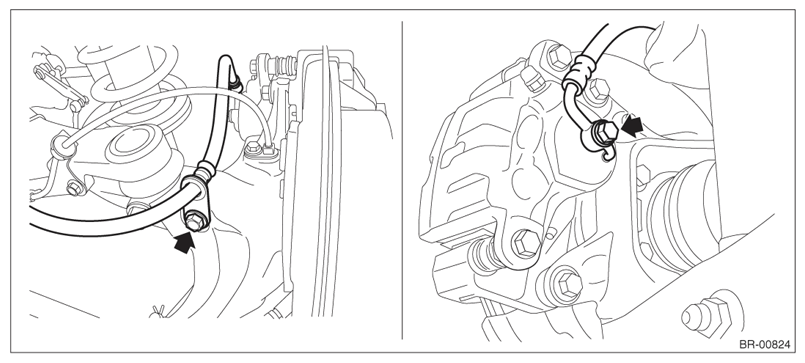

  Fig 1: Locating Brake Hose Bracket And Union Bolt
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the caliper bolt, and remove the caliper body.

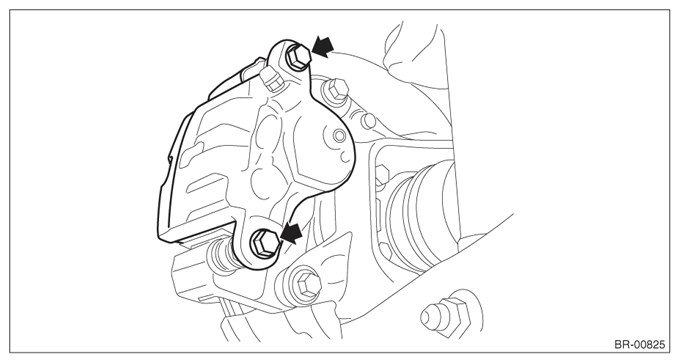

  Fig 2: Locating Caliper Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Remove the support.

NOTE: Remove the support only when replacing the disc rotor or support. It is not necessary to remove it when servicing the caliper body.

Remove the brake pad from support.
Remove the mounting bolts, and then remove the support from the rear axle housing.
