Console Box: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console front cover assembly.
    • MT model
    1. Remove the shift knob.
    2. Release the clips and claws, then pull up the console front cover assembly.
      Fig 1: Pulling Up Console Front Cover Assembly - MT Model
      G06653100Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
    3. Disconnect the harness connector and remove the console front cover assembly.
    • AT model
    1. Remove the select lever knob.
      1. Lower the cover grip AT.
      2. Remove the clamp grip pin, then remove the select lever knob.
    2. Release the clips and claws, then pull up the console front cover assembly.
      Fig 2: Pulling Up Console Front Cover Assembly - At Model
      G06653101Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
    3. Disconnect the harness connector and remove the console front cover assembly.
  2. Remove the left and right console front side cover assembly.
    1. Remove the screws and release the clip engagings (A) to (D) in order.
    2. Remove the console front side cover assembly by pulling it up.

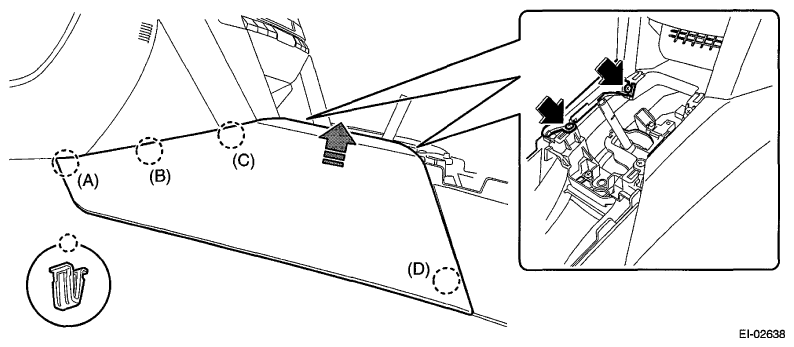

      Fig 3: Identifying Left And Right Console Front Side Cover Assembly With Clip (1 Of 2)
      G06653660Courtesy of SUBARU OF AMERICA, INC.

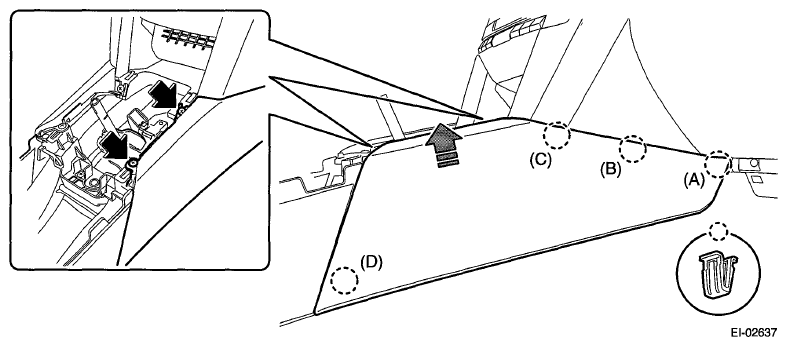

      Fig 4: Identifying Left And Right Console Front Side Cover Assembly With Clip (2 Of 2)
      G06654054Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the console box assembly.
    1. Move the seat forward, and remove the bolts after detaching the left and right caps.
      NOTE: For a model with power seat, connect the battery ground cable and move the seat. Then, disconnect the battery ground cable again and wait for 60 seconds at least before restarting the work.
    2. Remove the screws, disconnect the harness connector and remove the console box assembly.
    Fig 5: Locating Console Box Assembly Harness Connector And Screws
    G06653103Courtesy of SUBARU OF AMERICA, INC.
