Console Box

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

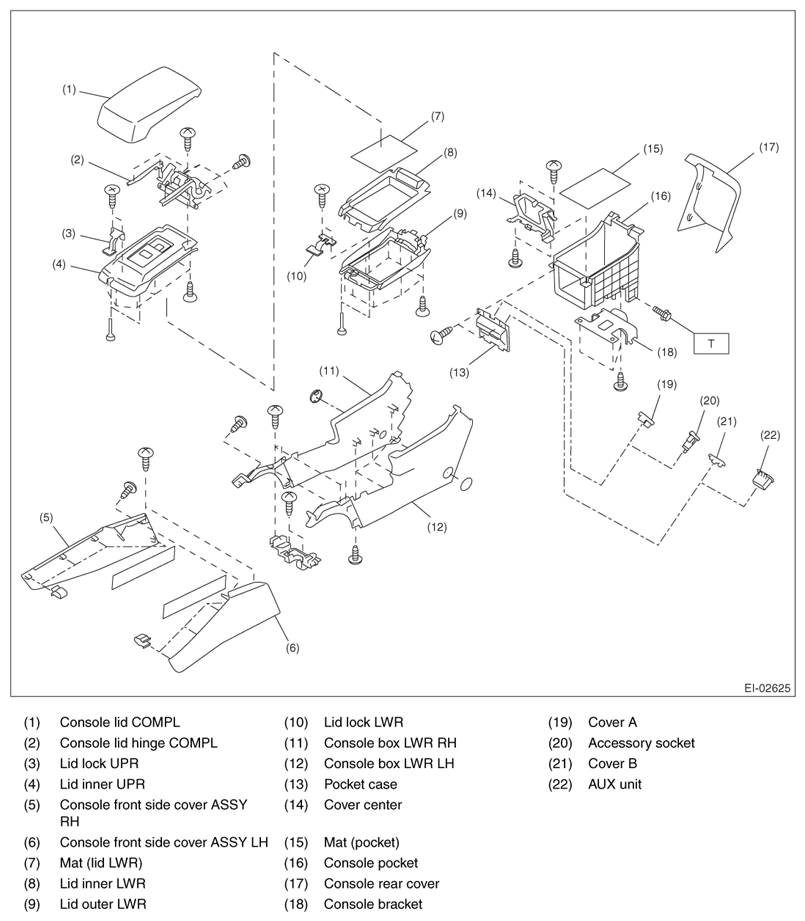

Fig 1: Exploded View Of Console Box With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.5 (0.66, 4.8)

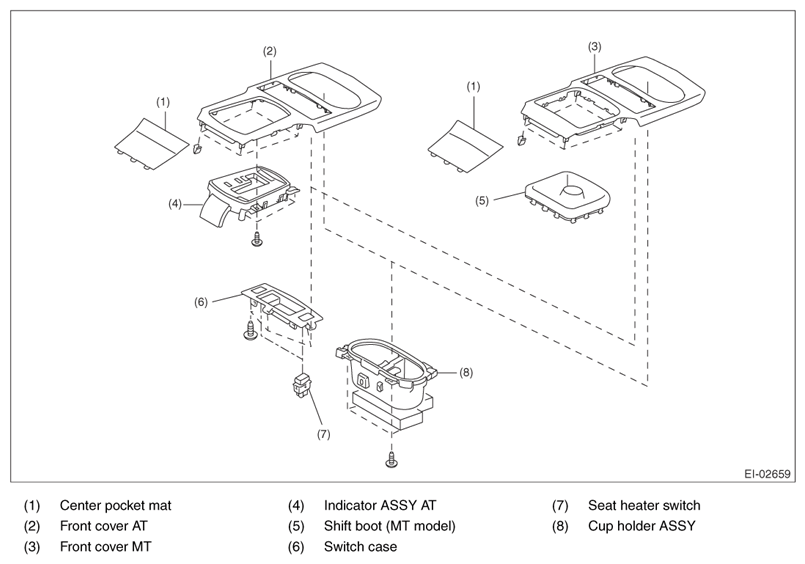

Fig 2: Identifying Console Box Components

Courtesy of SUBARU OF AMERICA, INC.
