Instrument Panel

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

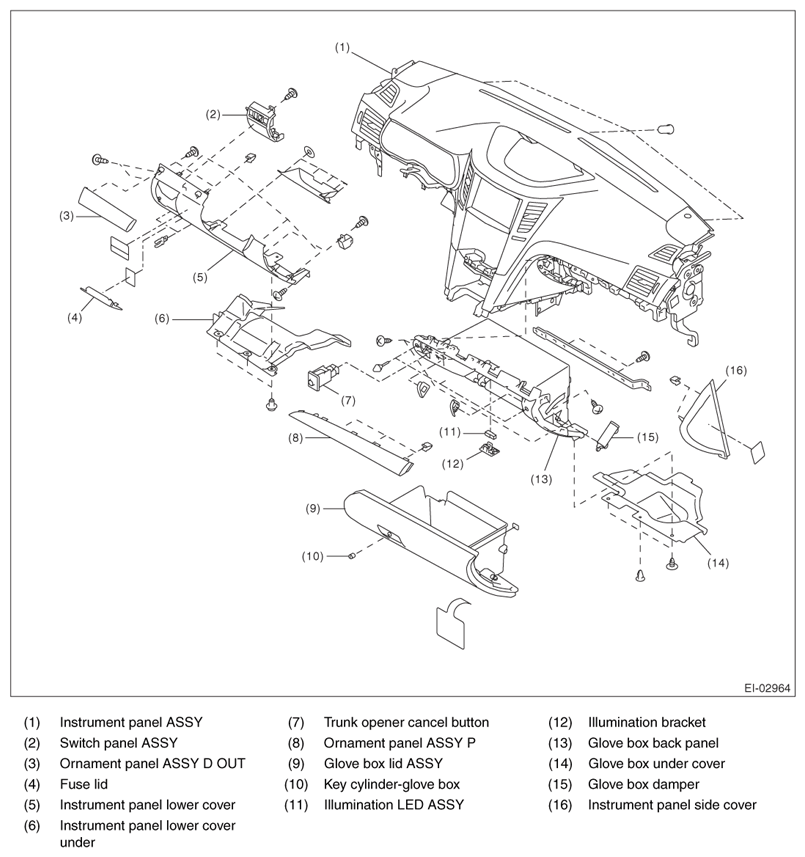

Fig 1: Exploded View Of Instrument Panel (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

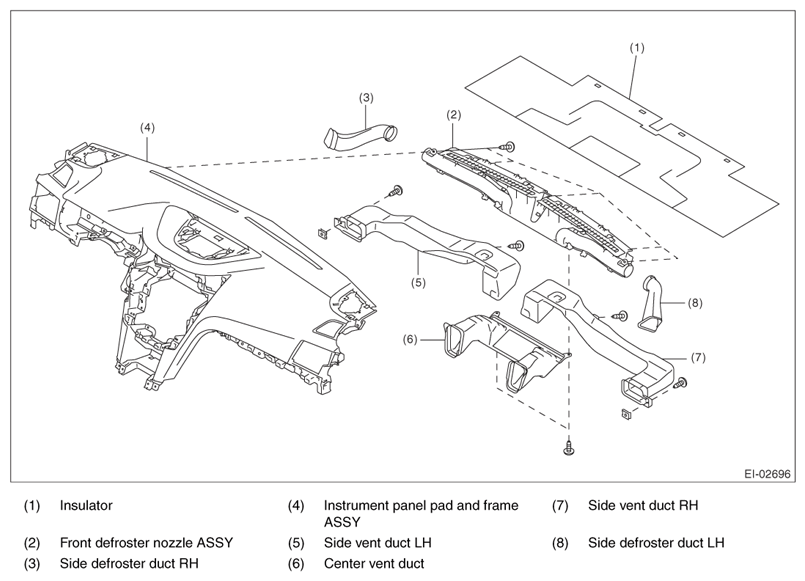

Fig 2: Exploded View Of Instrument Panel (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Exploded View Of Instrument Panel (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

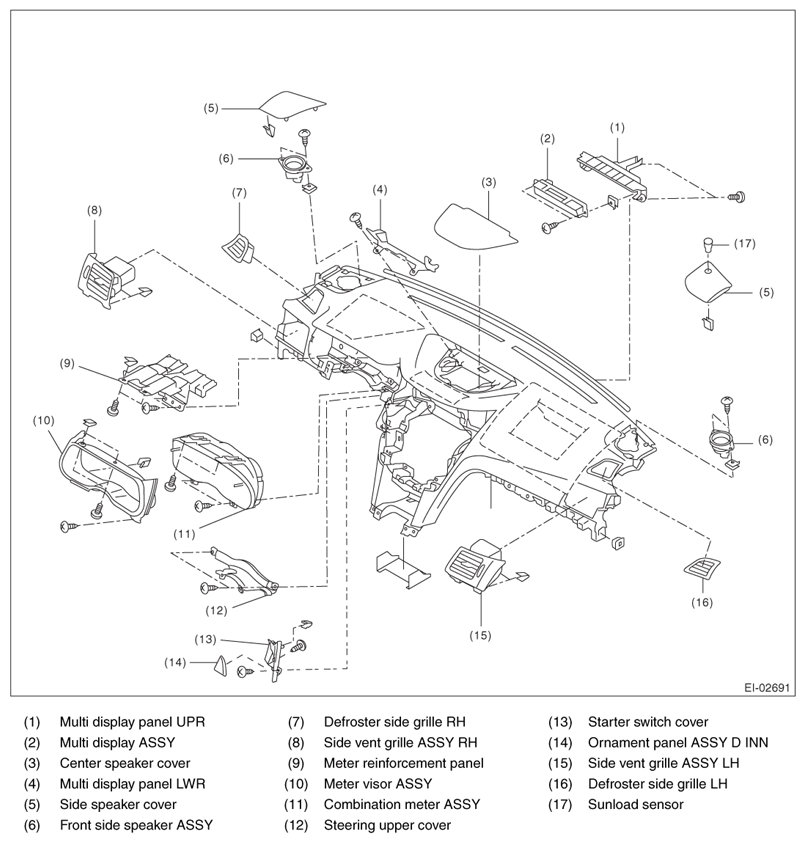

Fig 4: Exploded View Of Instrument Panel (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 3 (0.31, 2.2)

T3: 18 (1.84, 13.3)

T4: 25 (2.55, 18.4)

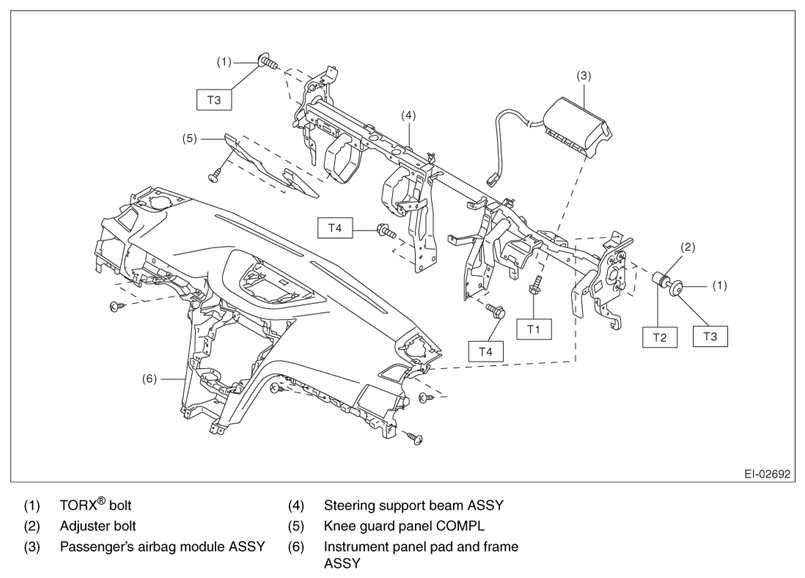

Fig 5: Exploded View Of Instrument Panel (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
