Control Module I/O Signal: Wiring Diagram

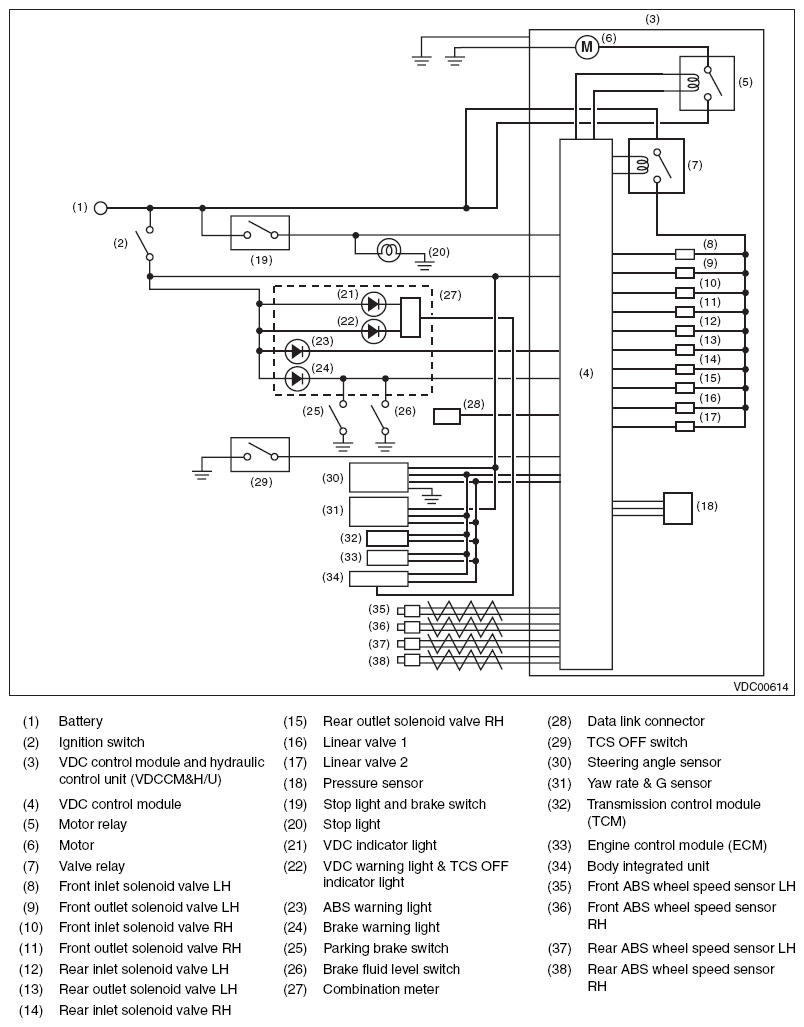

Fig 1: Control Module I/O Signal Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
