Rear Seat

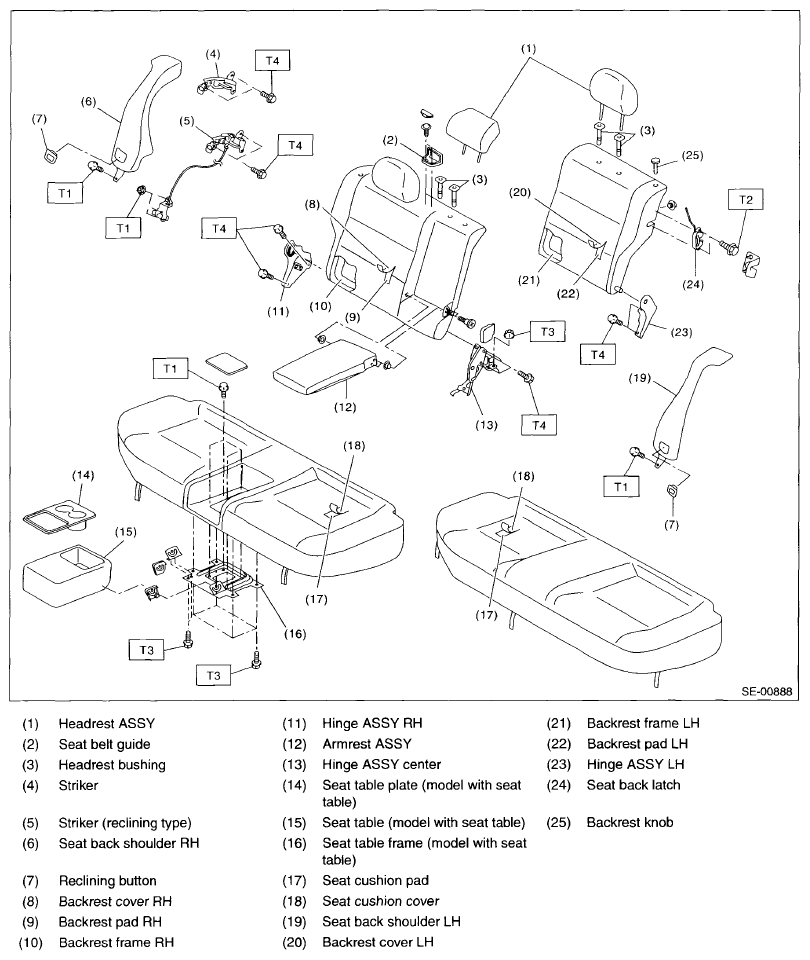

Fig 1: Exploded View Of Rear Seat

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 17.6 (1.79, 13.0)

T3: 24.5 (2.49, 18.1)

T4: 33 (3.36, 24.3)
