Rear Seat: Assembly

CAUTION:

Do not reuse hog rings.
Secure the hog ring using hog ring pliers .
Install the hog rings to the specified points securely and make sure that no wrinkle or twisting on backrest cover.

Assemble each part in the reverse order of disassembly.

NOTE:

Do not contaminate or damage the cover.
While installing the hog rings, prevent the seat from getting wrinkled.
1. Assemble the seat cover in the same manner as the front seat. Refer to ASSEMBLY
2. Make sure that all hog rings (A) are attached securely.

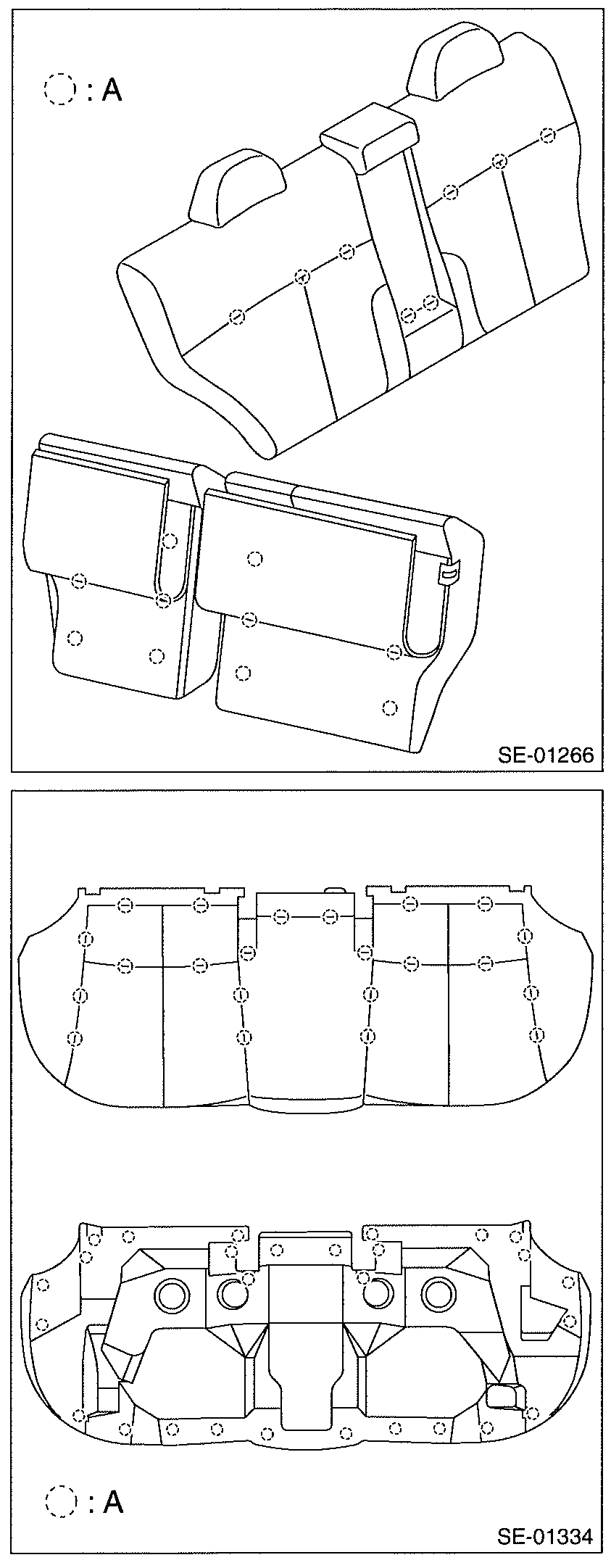

  Fig 1: Identifying Hog Rings
  Courtesy of SUBARU OF AMERICA, INC.

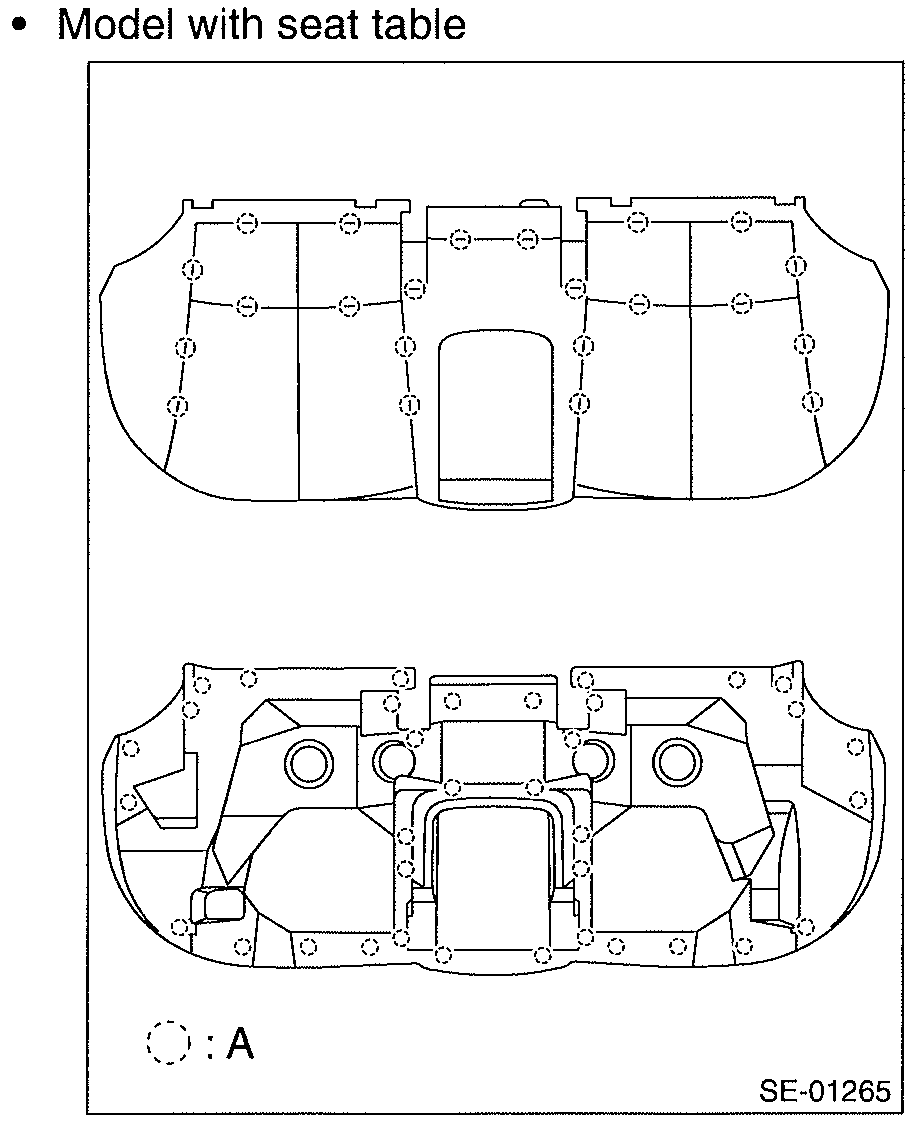

  Fig 2: Identifying Hog Rings (Seat Table)
  Courtesy of SUBARU OF AMERICA, INC.
3. Assemble each part in the reverse order of disassembly.
