Forester X, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System - Vehicle Dynamics Control (VDC) (Diagnostics)
›
Control Module I/O Signal
›
Wiring Diagram
Control Module I/O Signal: Wiring Diagram

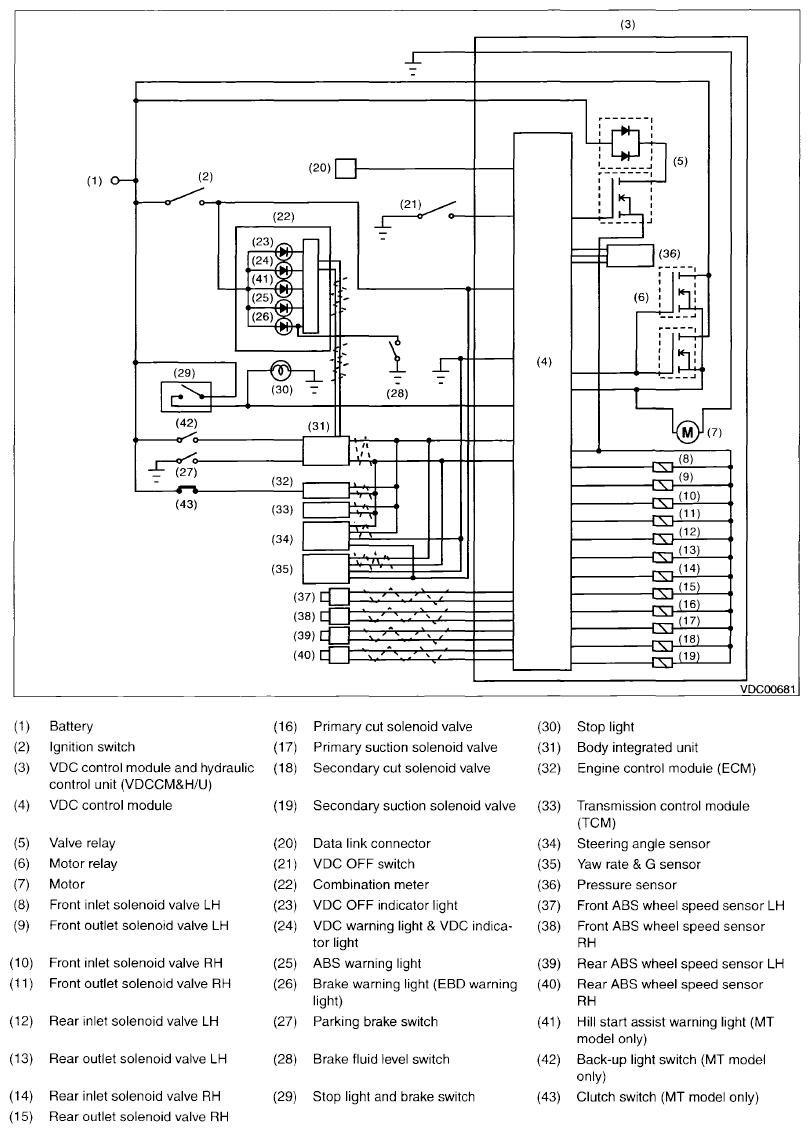

Fig 1: Control Module Wiring Diagram
