Engine Lubrication System (H4DOTC)
›
General Description
›
Components With Torque Specifications
›
Oil Pipe
Oil Pipe

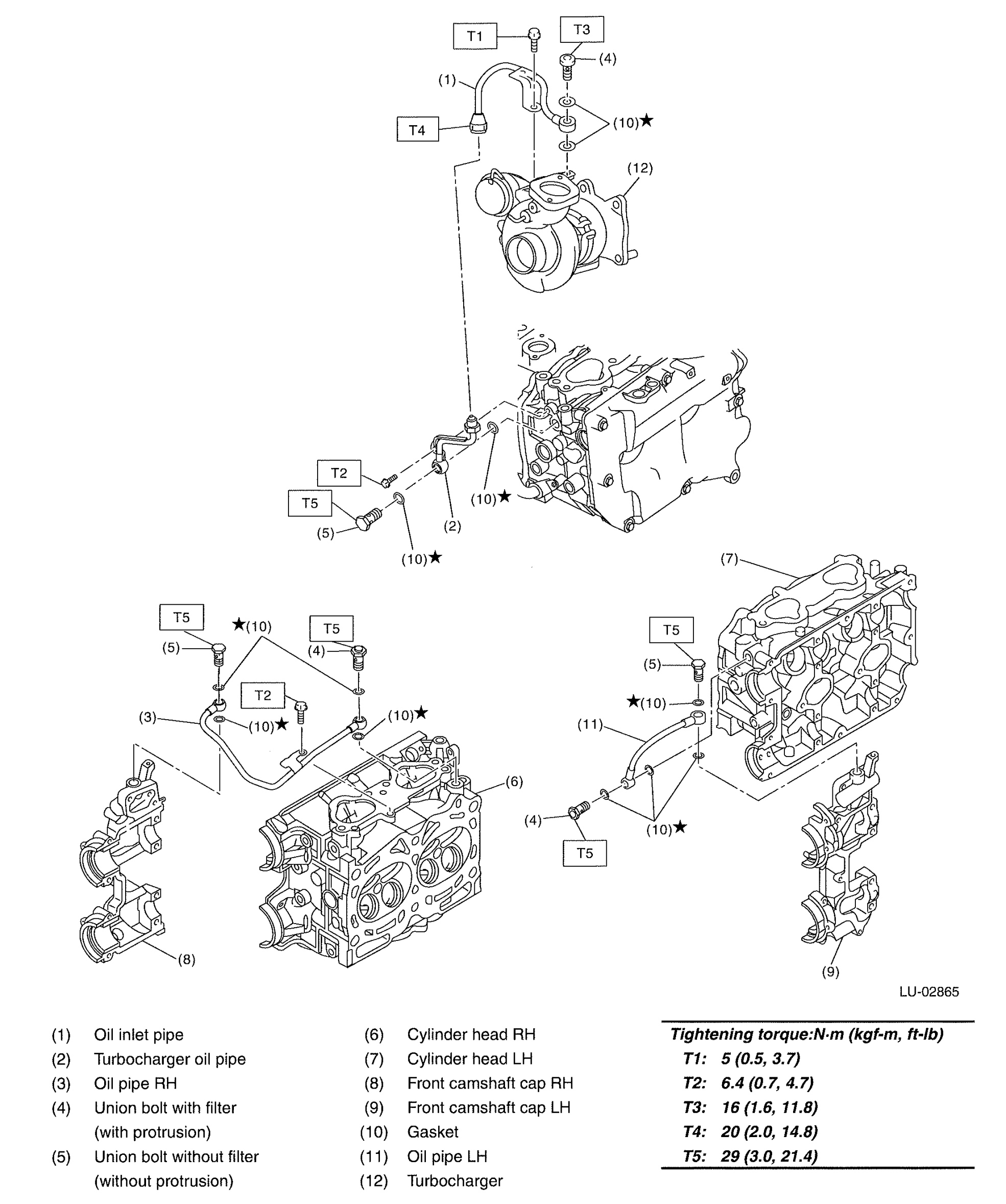

Fig 1: Exploded View Of Oil Pipe Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
