Engine Harness

• Structural diagram 1

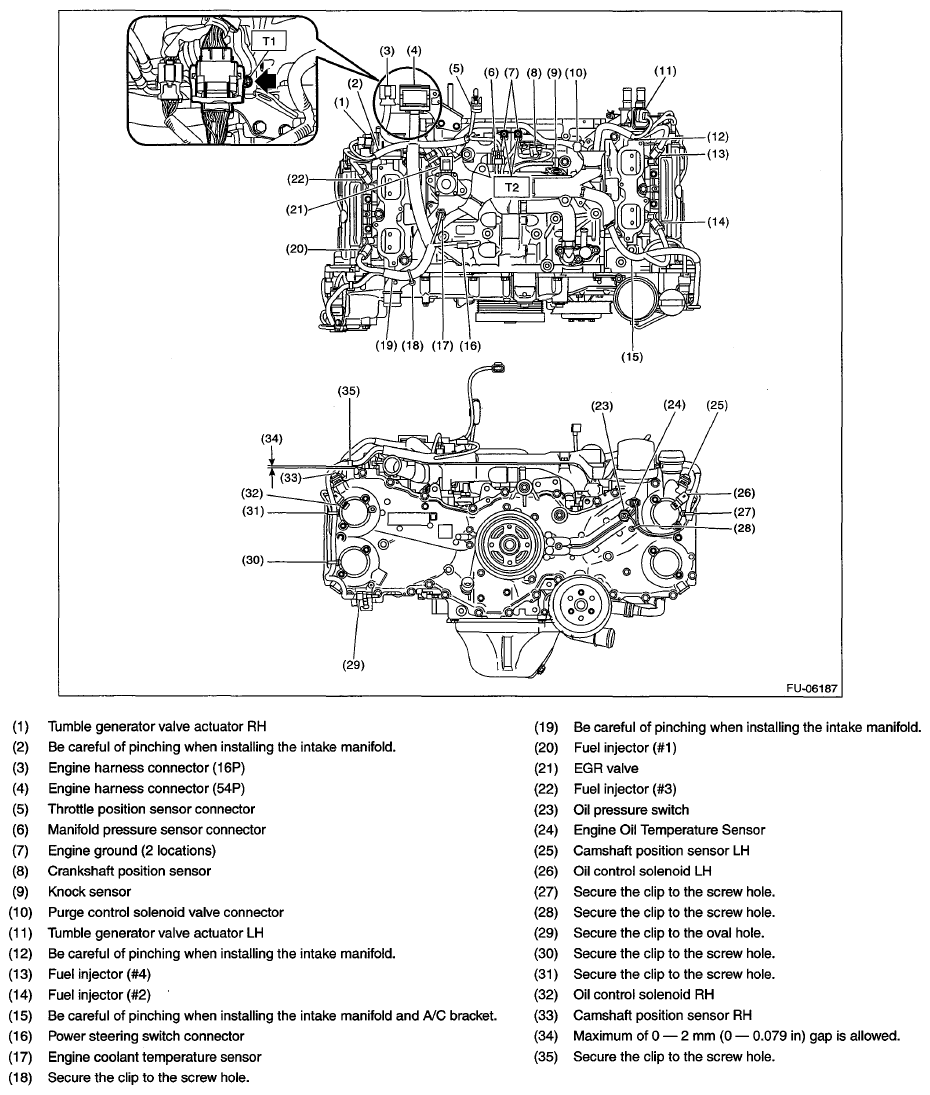

  Fig 1: Engine Harness Structural Diagram 1

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 19 (1.9, 14.0)

• Structural diagram 2

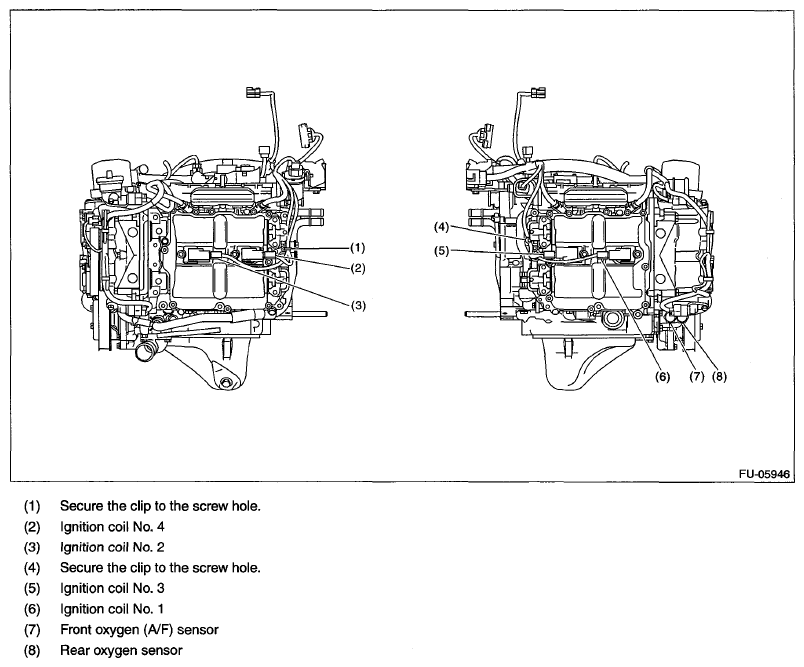

  Fig 2: Engine Harness Structural Diagram 2

  Courtesy of SUBARU OF AMERICA, INC.
