Fuel Injection System - Fuel Injection (H4DO)
›
General Description
›
Components With Torque Specifications
›
Throttle Body
Throttle Body

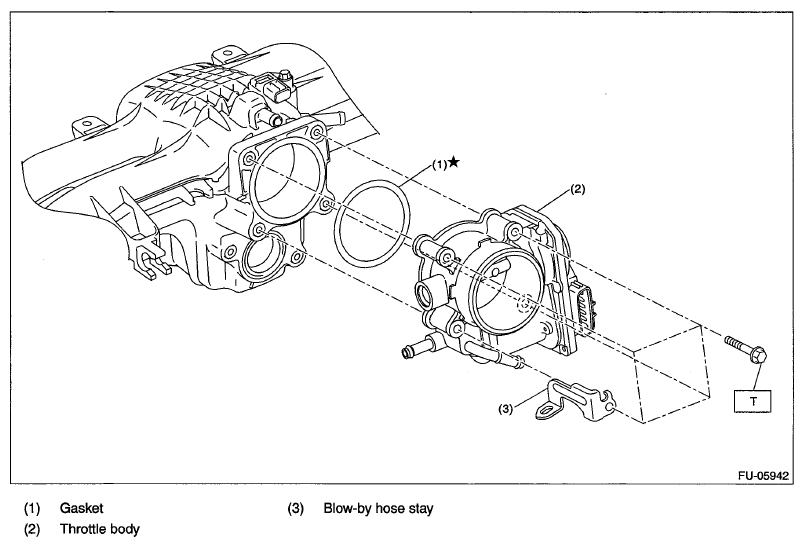

Fig 1: Exploded View Of Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 8.3 (0.8, 6.1)
