Components With Torque Specifications

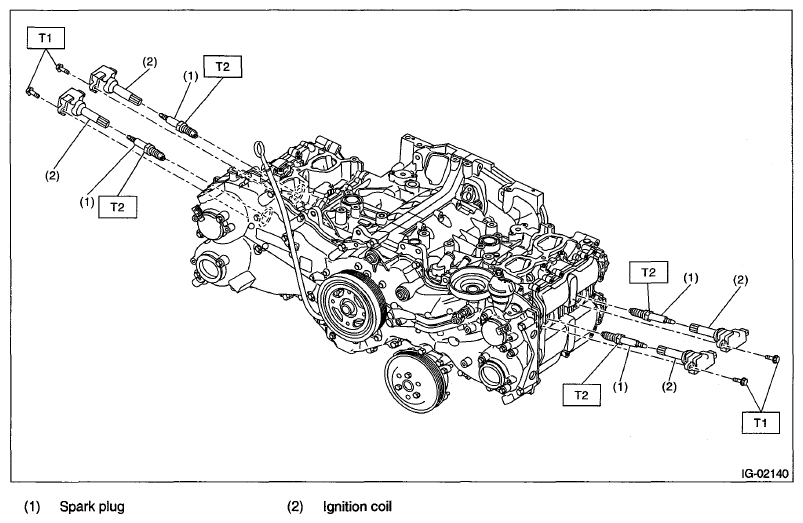

Fig 1: Identifying Spark Plug And Ignition Coil

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 12 (1.2, 8.9)

T2: 17 (1.7, 12.5)
