Spark Plug
›
Removal
›
RH Side
RH Side
Disconnect the ground cable from battery.

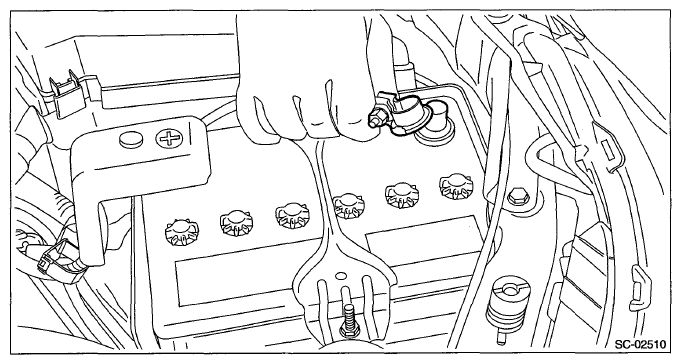

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. < Ref. to
REMOVAL
, Air Cleaner Case >
Disconnect the connector from ignition coil.
Remove the ignition coil.
Fig 2: Locating Ignition Coil Bolts (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug with a spark plug socket.
