Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

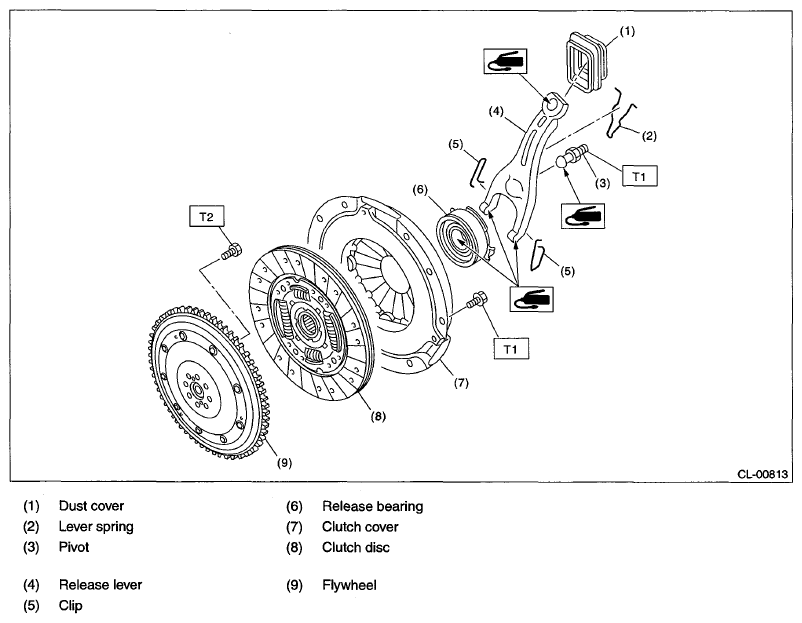

Fig 1: Exploded View Of Clutch Assembly With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: < Ref. to INSTALLATION , Flywheel . >
