Clutch Pedal

WARNING: This page is about a different variant/trim than selected.

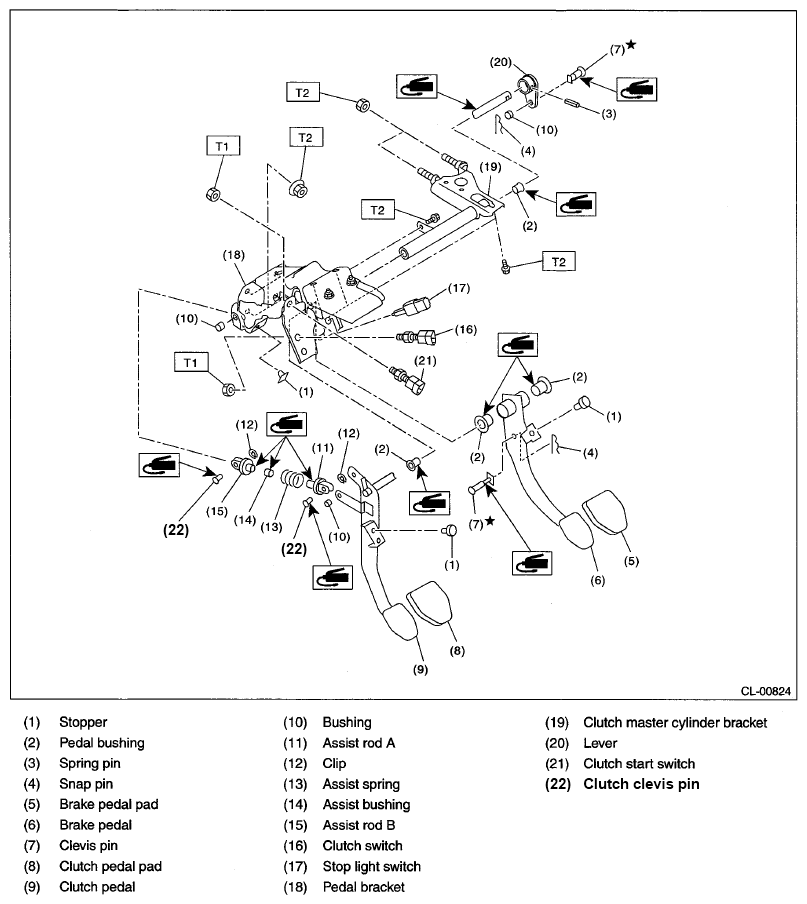

Fig 1: Exploded View Of Clutch Pedal With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m(kgf-m, ft-lb)

T1: 8(0.8, 5.9)

T2: 18 (1.8, 13.3)
