Automatic Transmission - Mechanism & Function (4AT)
›
Transmission Control Module (TCM)
›
Schematic Diagram
Schematic Diagram

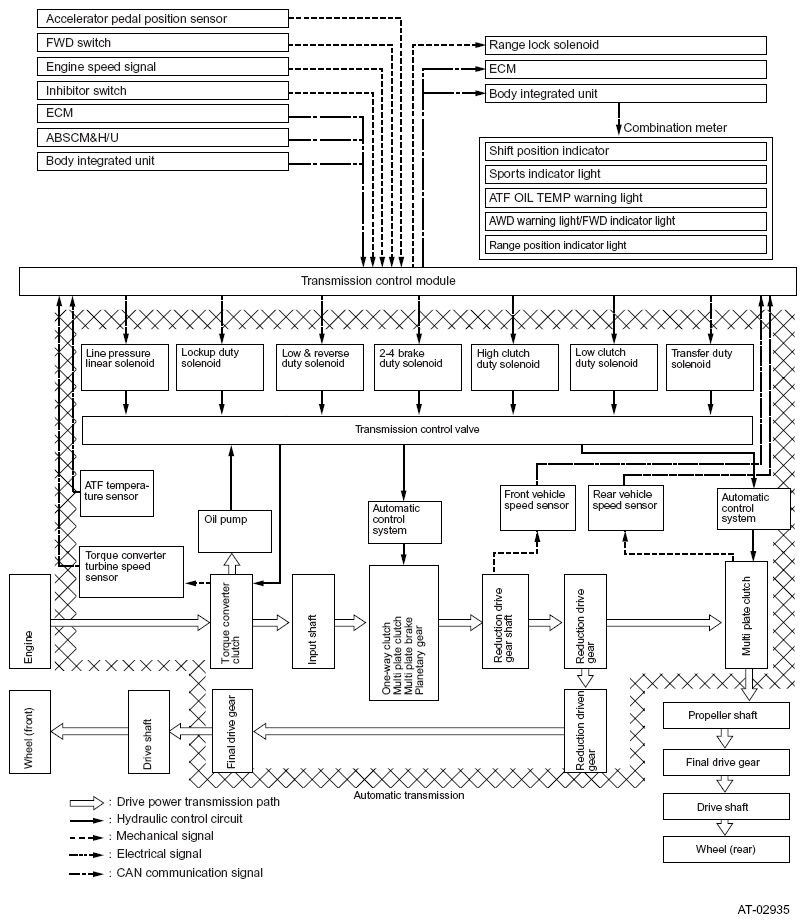

Fig 1: Transmission Control Module - Schematic
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
