Transmission Mounting: General

The transmission mounting consists of a pitching stopper, cushion rubber, and a cross member.

In addition to support the transmission, these components absorb noise and vibration caused by the transmission.

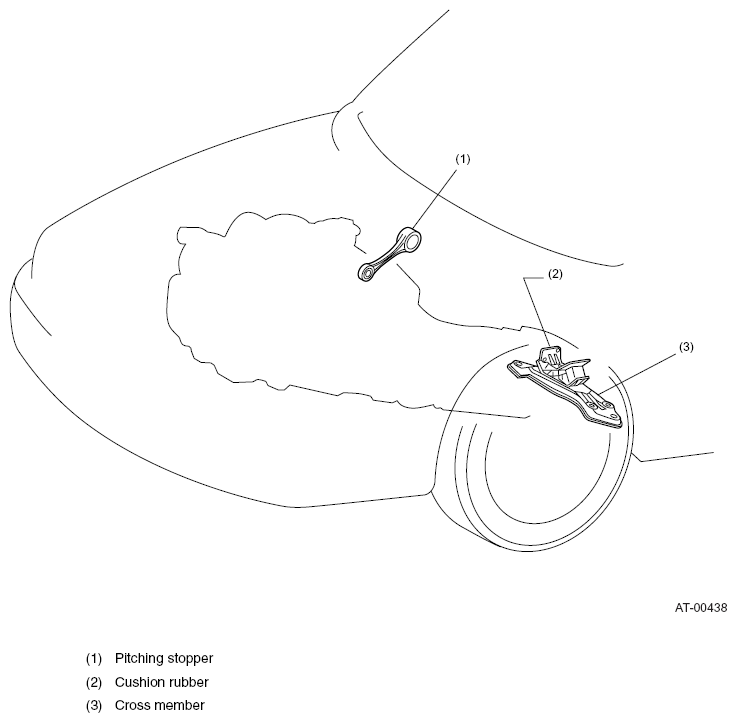

Fig 1: Identifying Pitching Stopper, Cushion Rubber And Cross Member

Courtesy of SUBARU OF AMERICA, INC.
