Ambient Sensor Connector End View
Ambient Sensor Connector End View

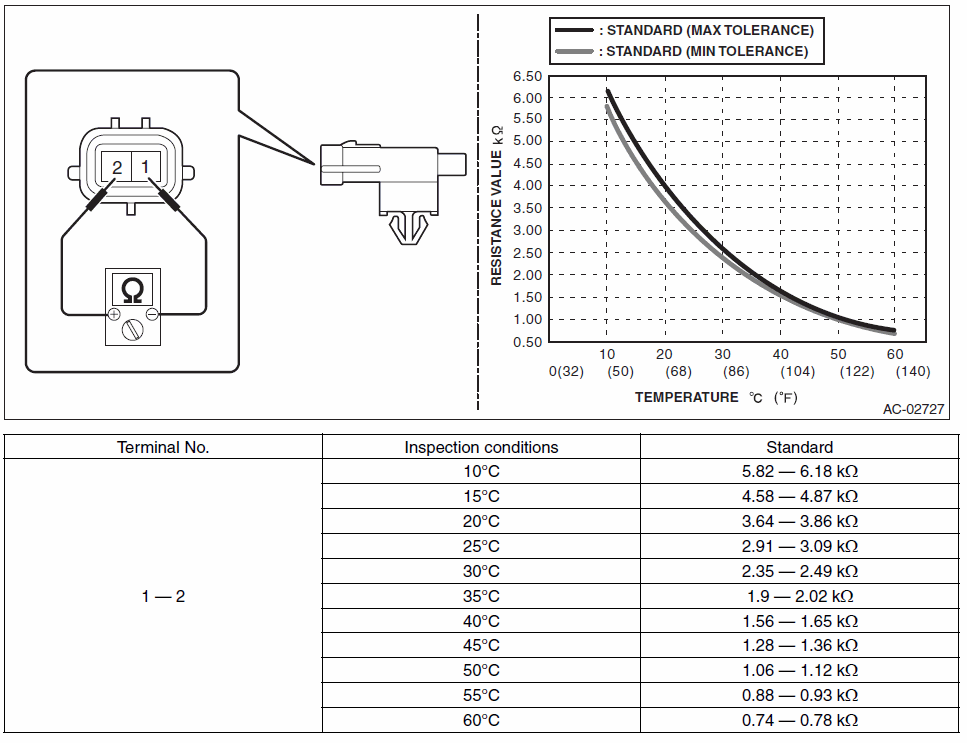

Fig 1: Ambient Sensor Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
