Main Shaft For Single-Range

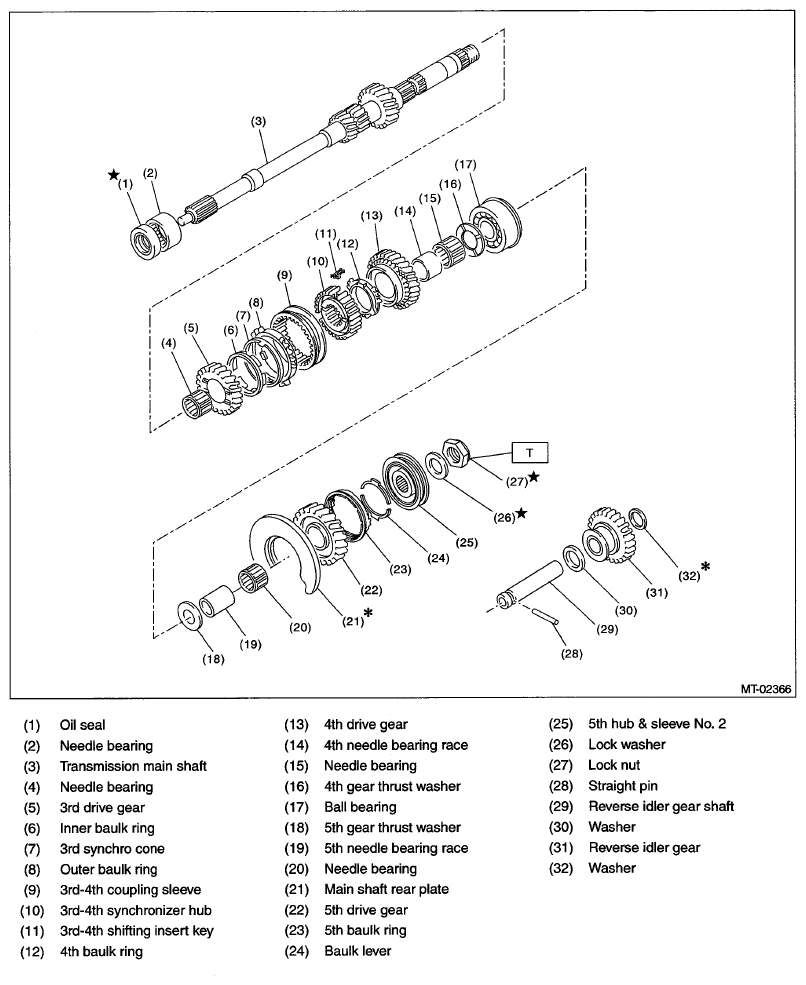

Fig 1: Exploded View Of Main Shaft For Single-Range With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 120 (12.2, 88.5)
