Auto Headlight Beam Leveler System Connector End View
Auto Headlight Beam Leveler System Connector End View

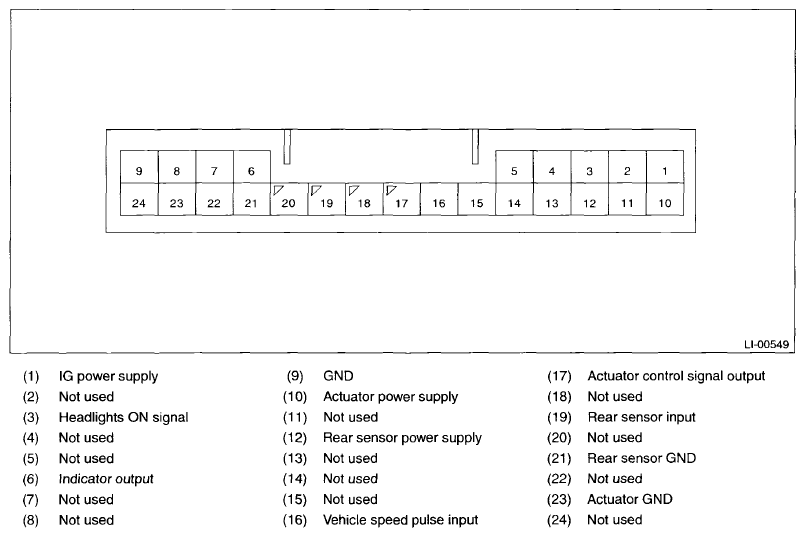

Fig 1: Auto Headlight Beam Leveler System Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
