SUBARU Intelligent Drive System (From '07MY): Controls

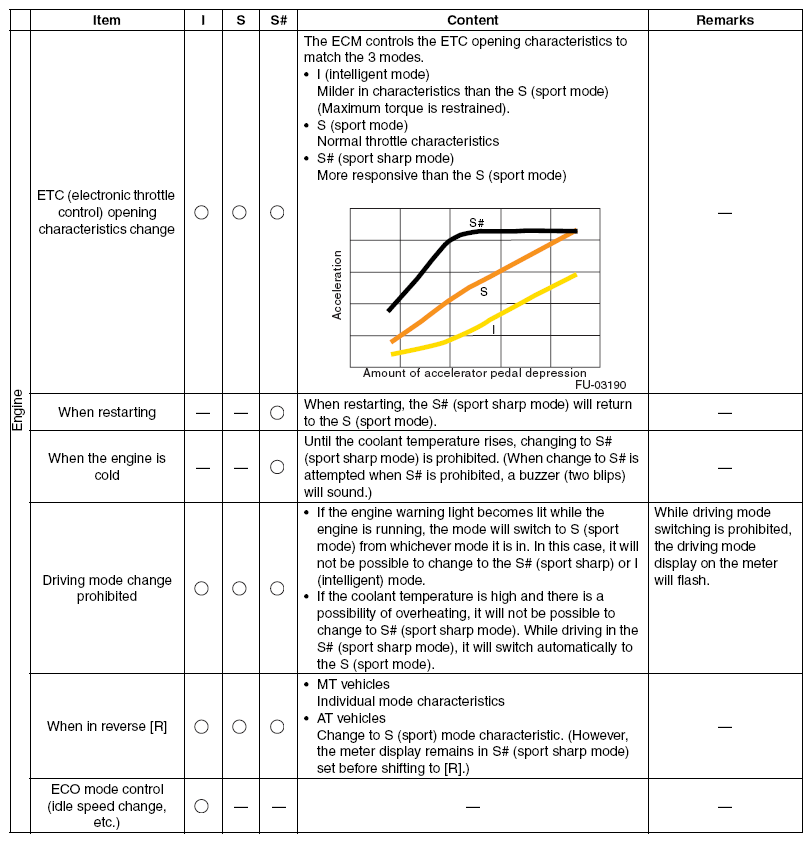

Fig 1: ETC (Electronic Throttle Control) Opening Characteristics Graph
Courtesy of SUBARU OF AMERICA, INC.

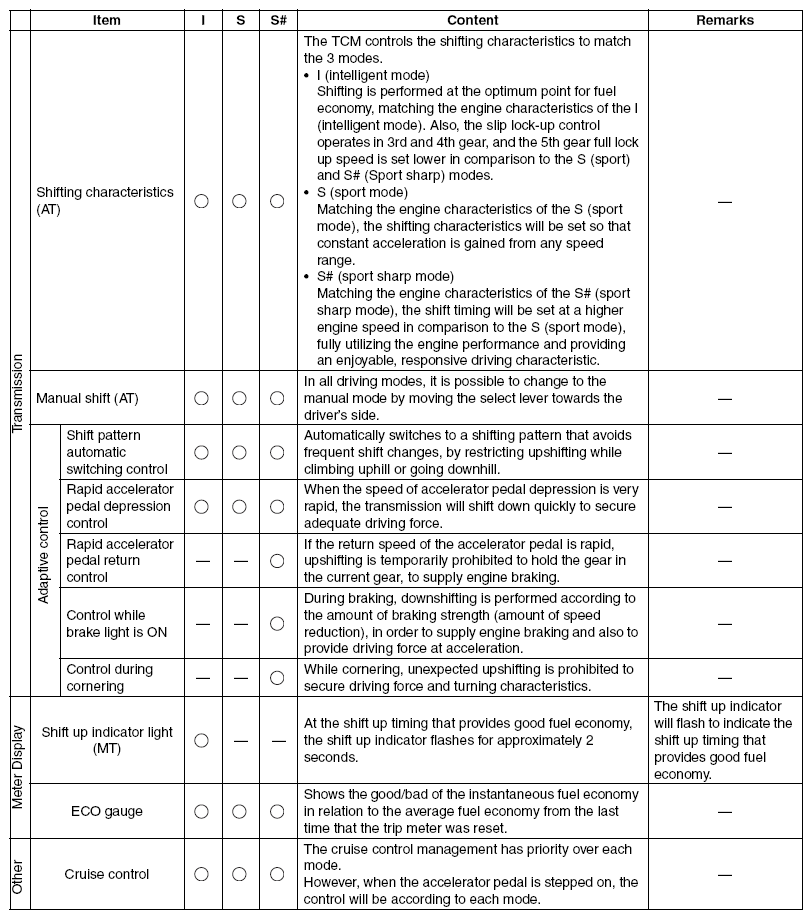

Fig 2: Subaru Intelligent Drive System Components Function Chart
Courtesy of SUBARU OF AMERICA, INC.
