Multi-Information Display

Meter interrupt screen
When a mode change is performed, a mode change screen will be displayed for approximately 3 seconds, indicating which mode was selected. When displaying, a buzzer (blip) will sound.

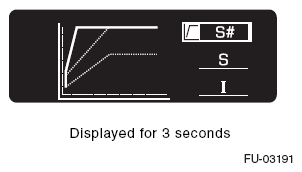

Fig 1: Display - Meter Interrupt Screen
Courtesy of SUBARU OF AMERICA, INC.
SI-DRIVE screen
By operating the control switch on the steering wheel, it is possible to display the SI-DRIVE screen. The SI-DRIVE screen will display a graph that changes according to the drive mode and accelerator opening.

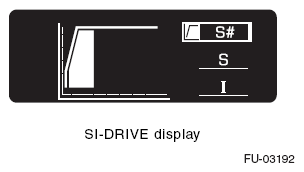

Fig 2: Display - SI-Drive Screen
Courtesy of SUBARU OF AMERICA, INC.
Mode display in screens other than SI-DRIVE
The driving mode will be displayed on the left side in screens other than SI-DRIVE.

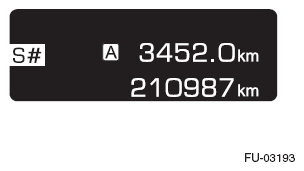

Fig 3: Display - Driving Mode
Courtesy of SUBARU OF AMERICA, INC.
