Engine Harness

Structural diagram 1

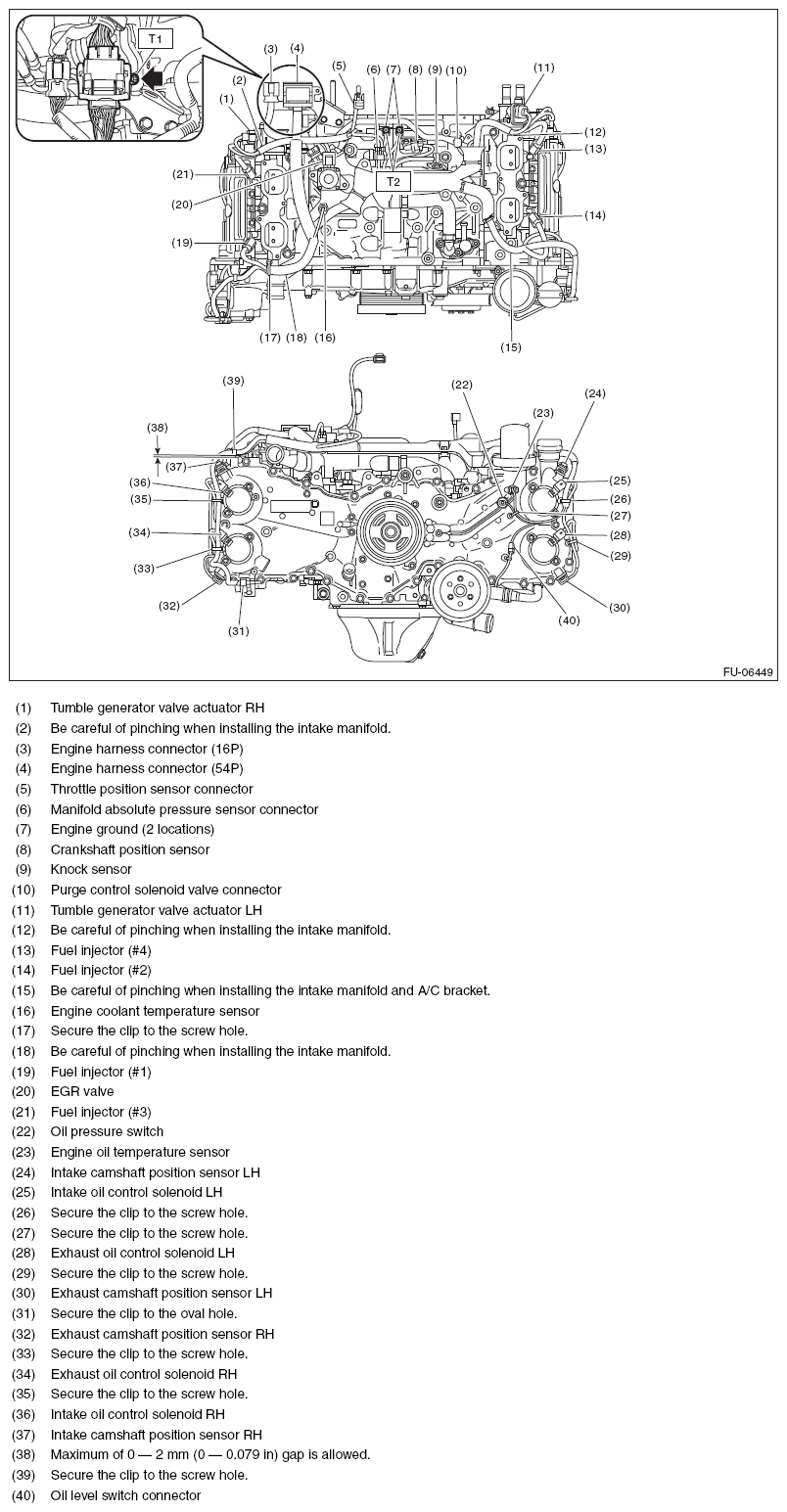

Fig 1: Engine Components Location With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 19 (1.9, 14.0)
Structural diagram 2

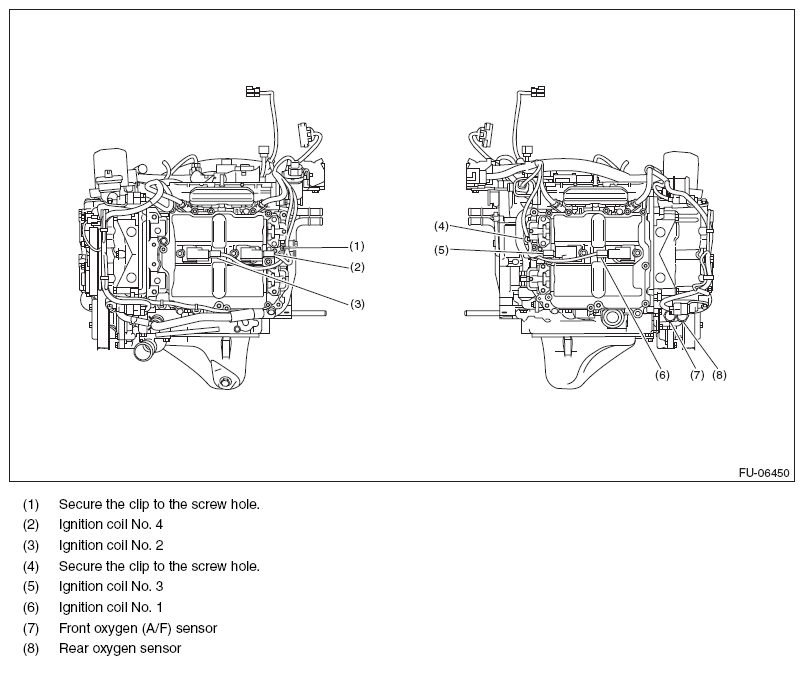

Fig 2: Engine Components Location
Courtesy of SUBARU OF AMERICA, INC.
