VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

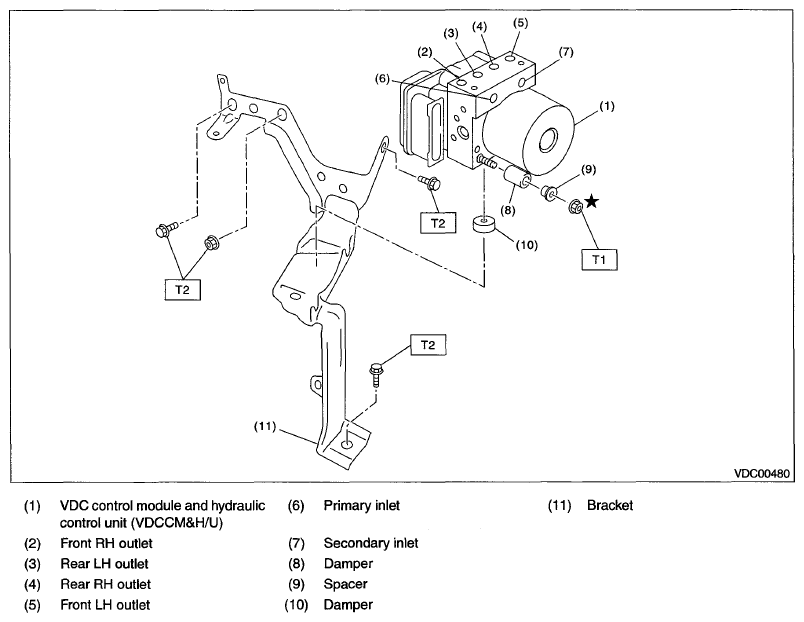

Fig 1: Identifying VDC Control Module & Hydraulic Control Unit (VDCCM&H/U) Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.36, 24.3)
