Intake Manifold

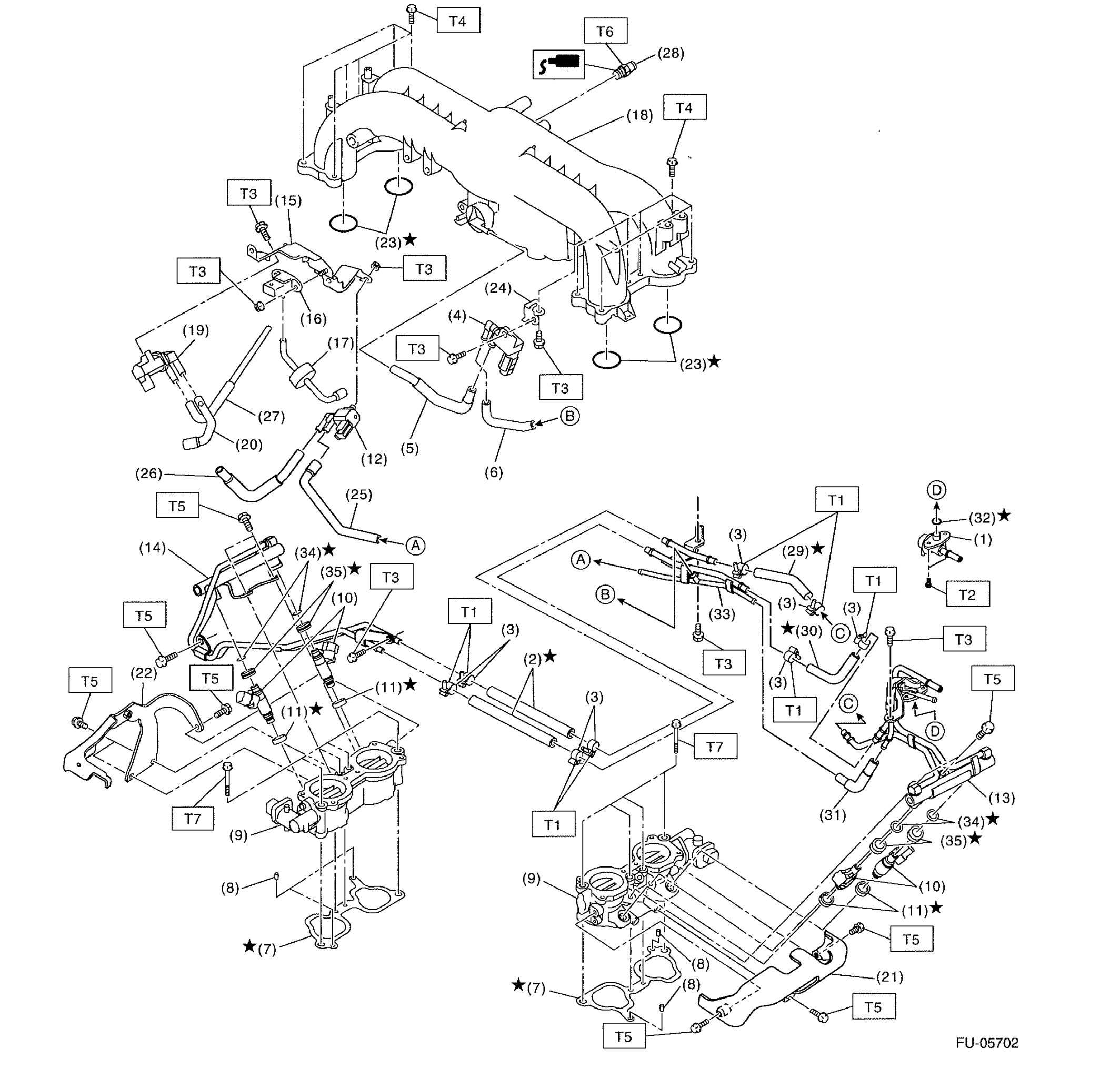

Fig 1: Exploded View Of Intake Manifold Components

G00523613

Courtesy of SUBARU OF AMERICA, INC.

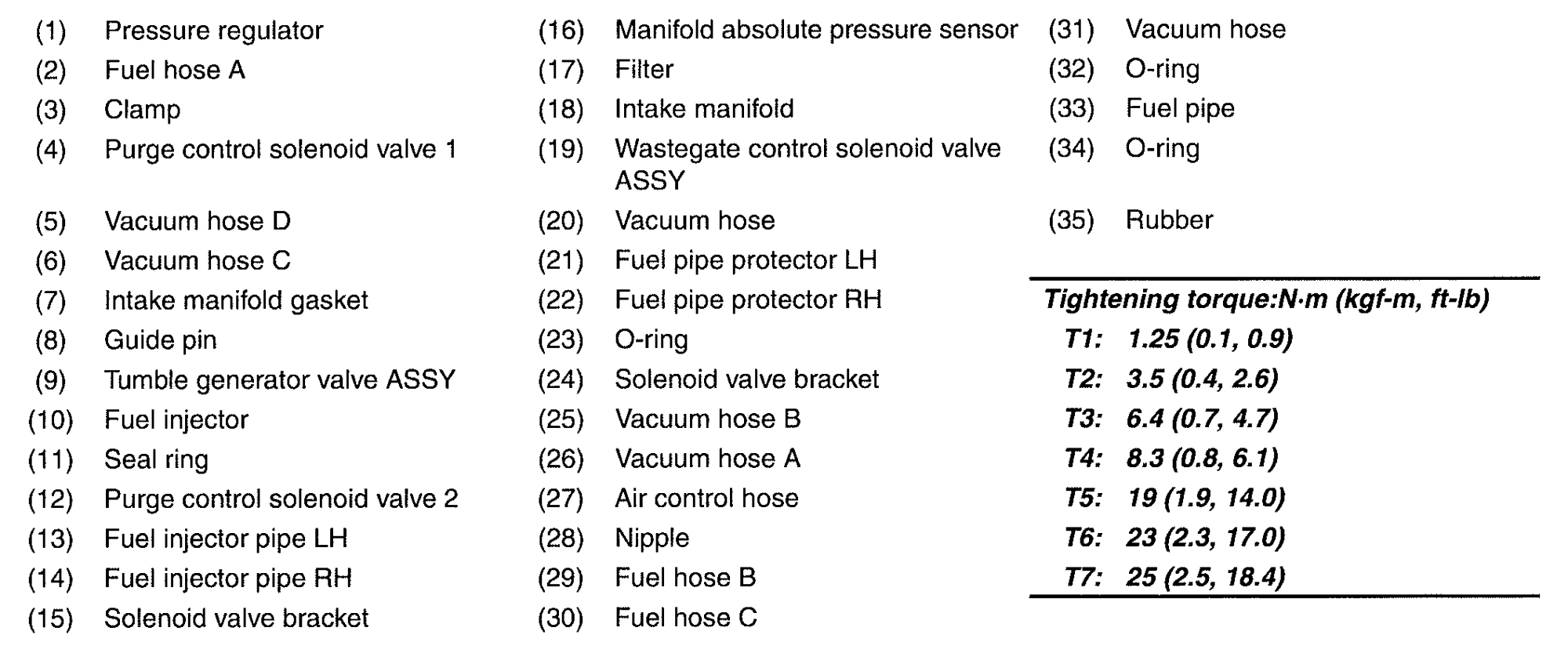

Fig 2: Intake Manifold Component Identification List With Torque Specs

G00523614

Courtesy of SUBARU OF AMERICA, INC.
