Clutch System - Mechanism & Function
›
Clutch
›
Non-Turbo Models
Non-Turbo Models

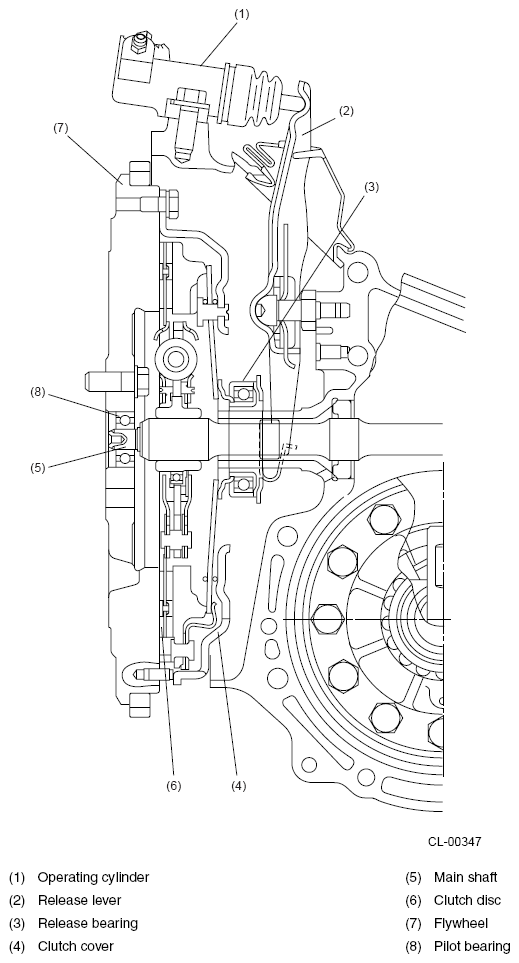

Fig 1: Identifying Clutch And Related Components (Non-Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
