Fuel Filler Pipe: Disassembly

Remove the shut valve from the fuel filler pipe. Refer to SHUT VALVE .
Remove the evaporation pipe from the fuel filler pipe.

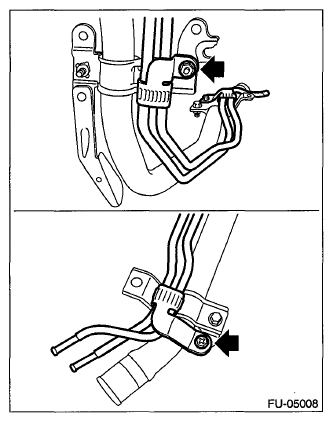

Fig 1: Locating Fuel Filler Pipe Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe bracket from the fuel filler pipe.

Fig 2: Locating Fuel Filler Pipe Bracket Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
