RH Side

Release the fuel pressure. Refer to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Remove the collector cover.
Disconnect the ground cable from battery.

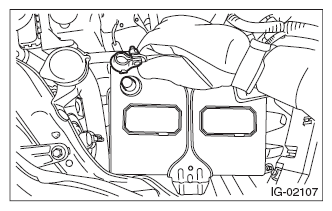

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. Refer to , REMOVAL , Intake Manifold.
Remove the intake manifold protector RH from intake manifold.

Fig 2: Locating Intake Manifold Protector Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel injector and tumble generator valve assembly.

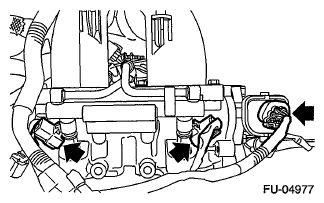

Fig 3: Locating Fuel Injector And Tumble Generator Valve Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the fuel pipe to the intake manifold.

Fig 4: Locating Intake Manifold Fuel Pipe Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

Fig 5: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
