Fuel Pump Control Unit: Removal

Disconnect the ground cable from battery.

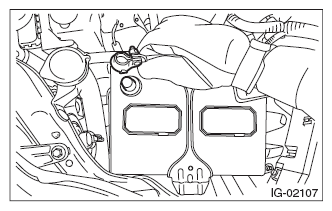

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the trunk trim panel assembly-side RH. Refer to REAR QUARTER TRIM .
Remove the fuel pump control unit.

Fig 2: Locating Fuel Pump Control Mounting Nut Unit
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel pump control unit.

Fig 3: Disconnecting Connector From Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
