Main Relay: Removal

Disconnect the ground cable from battery.

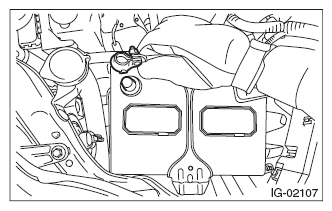

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lid assembly. Refer to GLOVE BOX .
Remove the main relay from the relay holder.

Fig 2: Locating Relay Holder
Courtesy of SUBARU OF AMERICA, INC.
